Lowrance
Lowrance HDS Pro 12 Combo Including Active Imaging HD 3in1 Transducer and CMAP Discover
Details
https://www.bcf.com.au/p/lowrance-hds-pro-12-combo-including-active-imaging-hd-3in1-transducer-and-cmap-discover/656427.htmlPromotions
Special Offer
Additional Information
Product Info
Product Info
The Lowrance HDS PRO 12 inch sounder combo is a cracking fishfinder for anglers around the country. The unit has everything you need to find and catch more fish straight from the box, including a 3-in-1 transducer, C-MAP charts, marine tech compatibility and much more.

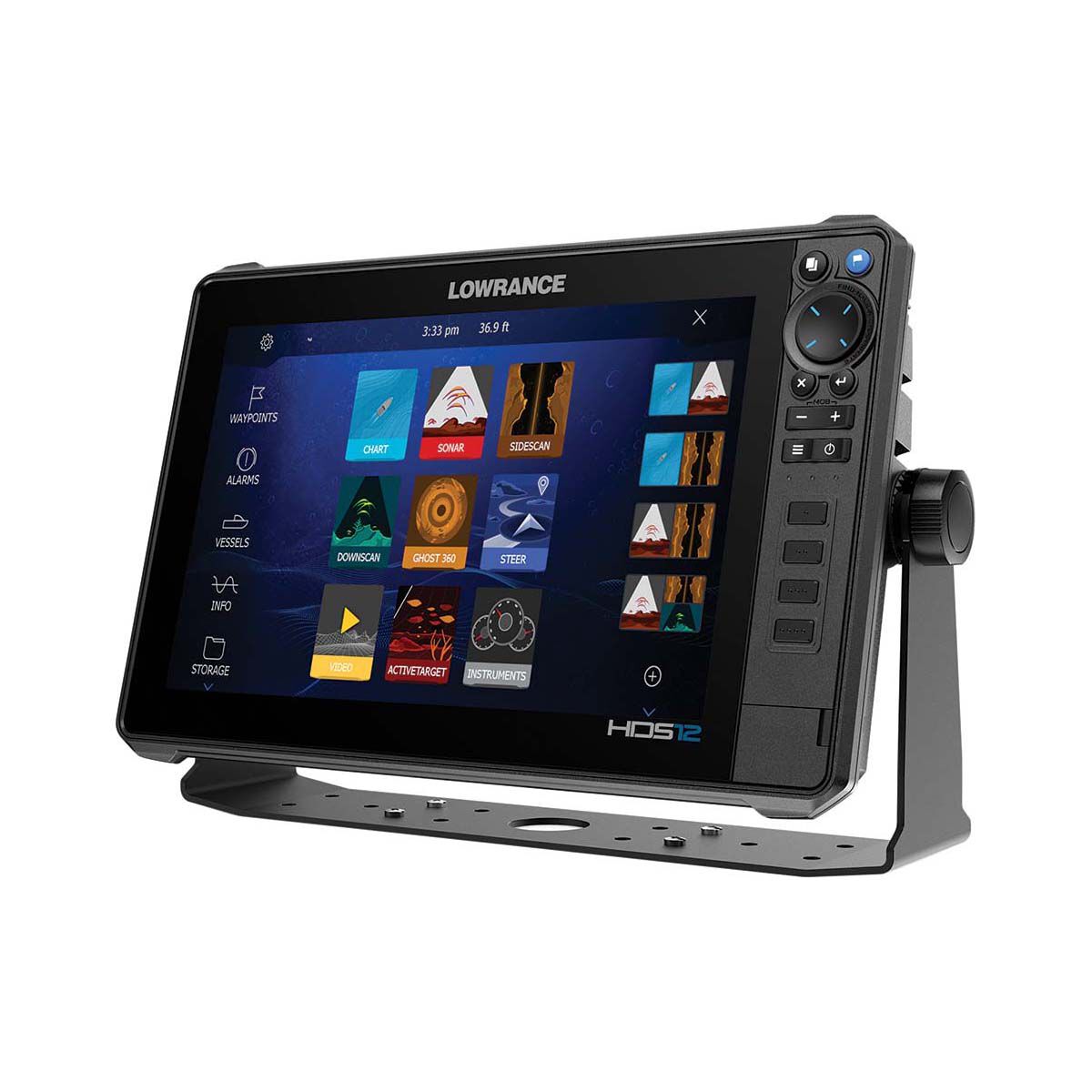

At 12 inches, this sounder provides clear, sharp viewing from around the boat. The ultra HD multi-functional display is fully customisable to show multiple sonar options to suit your fishing style. It’s easy to read under direct sunlight, and the brightness can be adjusted to suit low light conditions for those fishing at night.
The HDS PRO range is pre-loaded with C-MAP charts for Australian and NZ waters, with the option to install additional mapping software on the unit. Genesis Live allows for real time mapping, which is beneficial when you’re exploring new fishing grounds. You can even data share with an existing Lowrance sounder to display maps, routes and marks across both units. For all marine mapping needs, the HDS PRO has you covered.

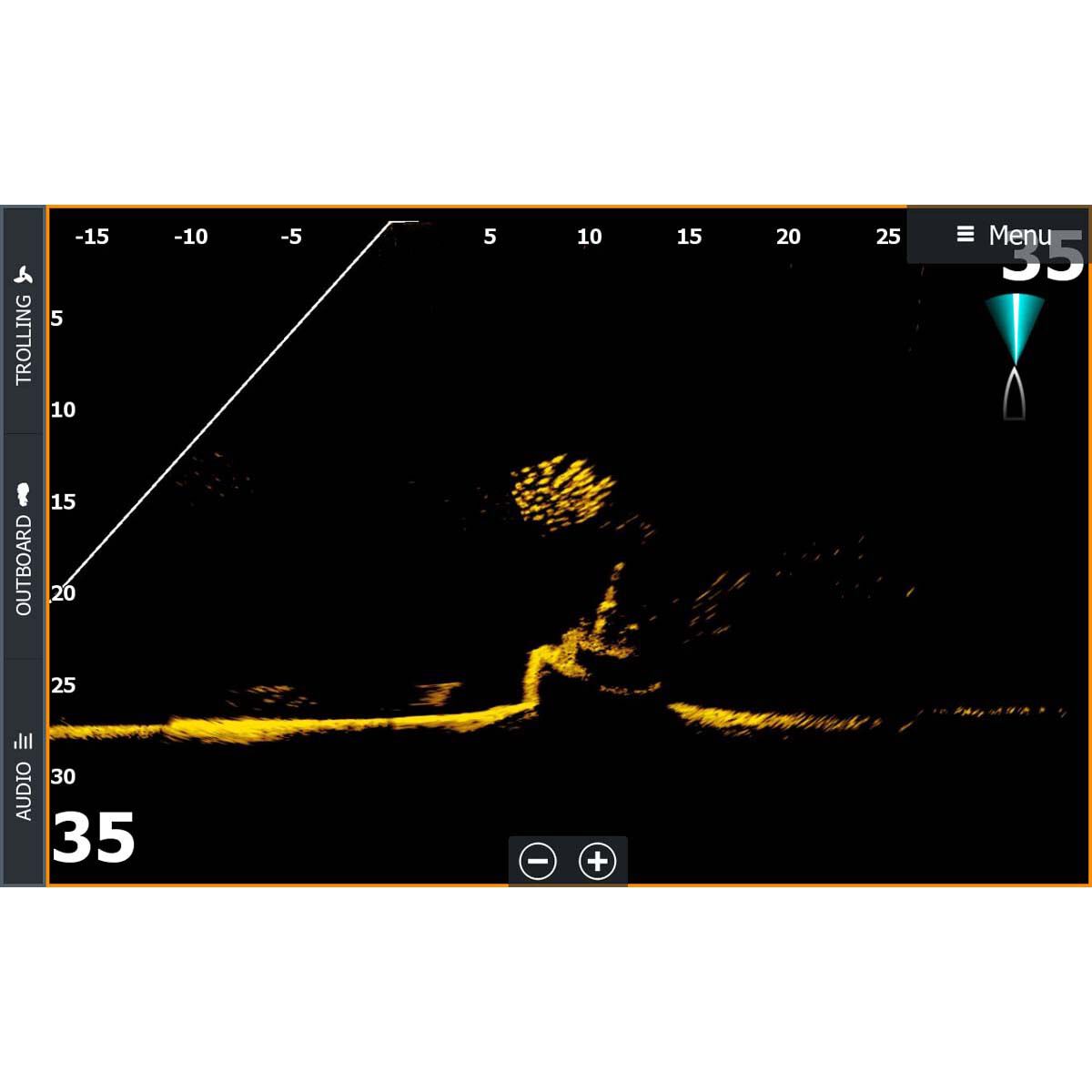

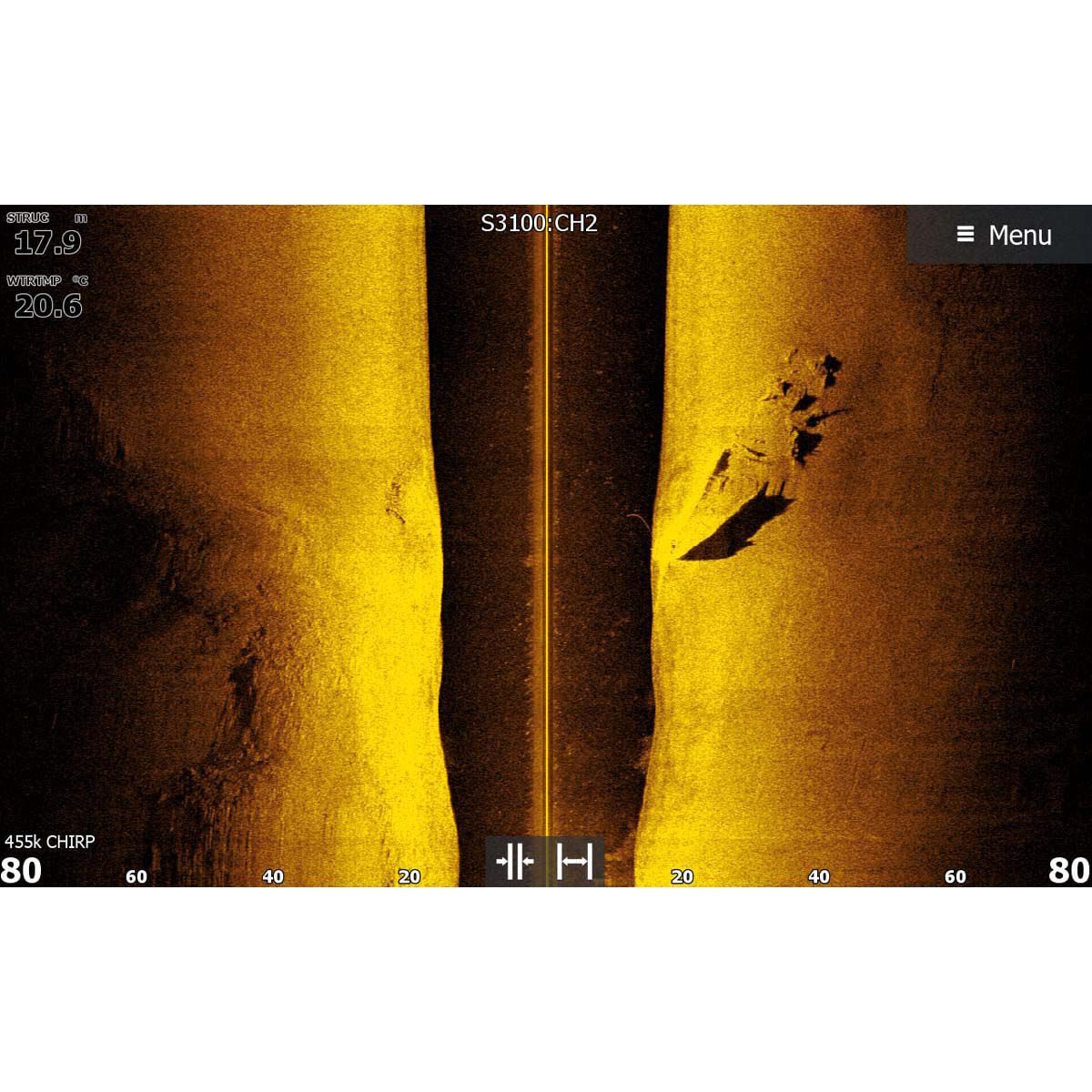

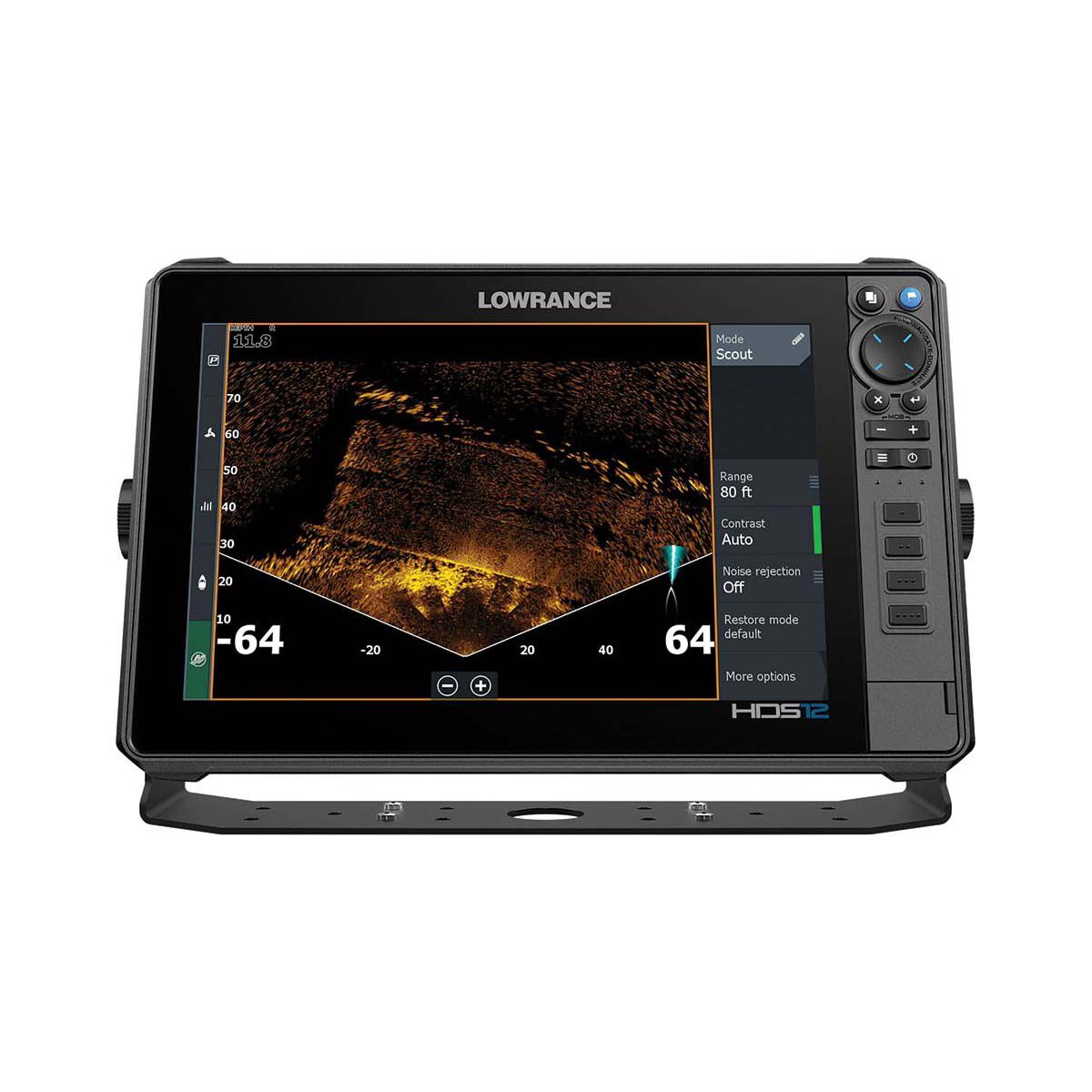

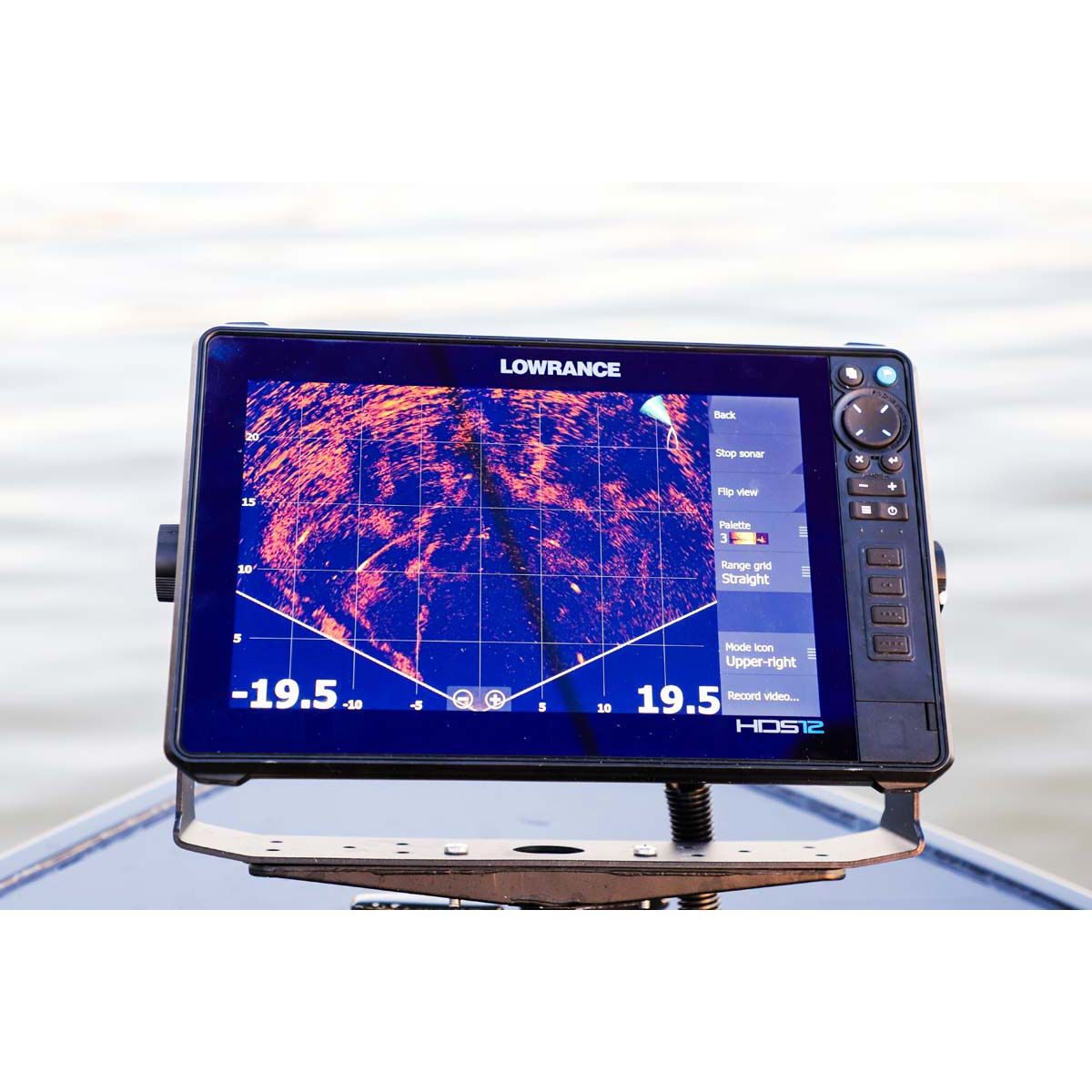

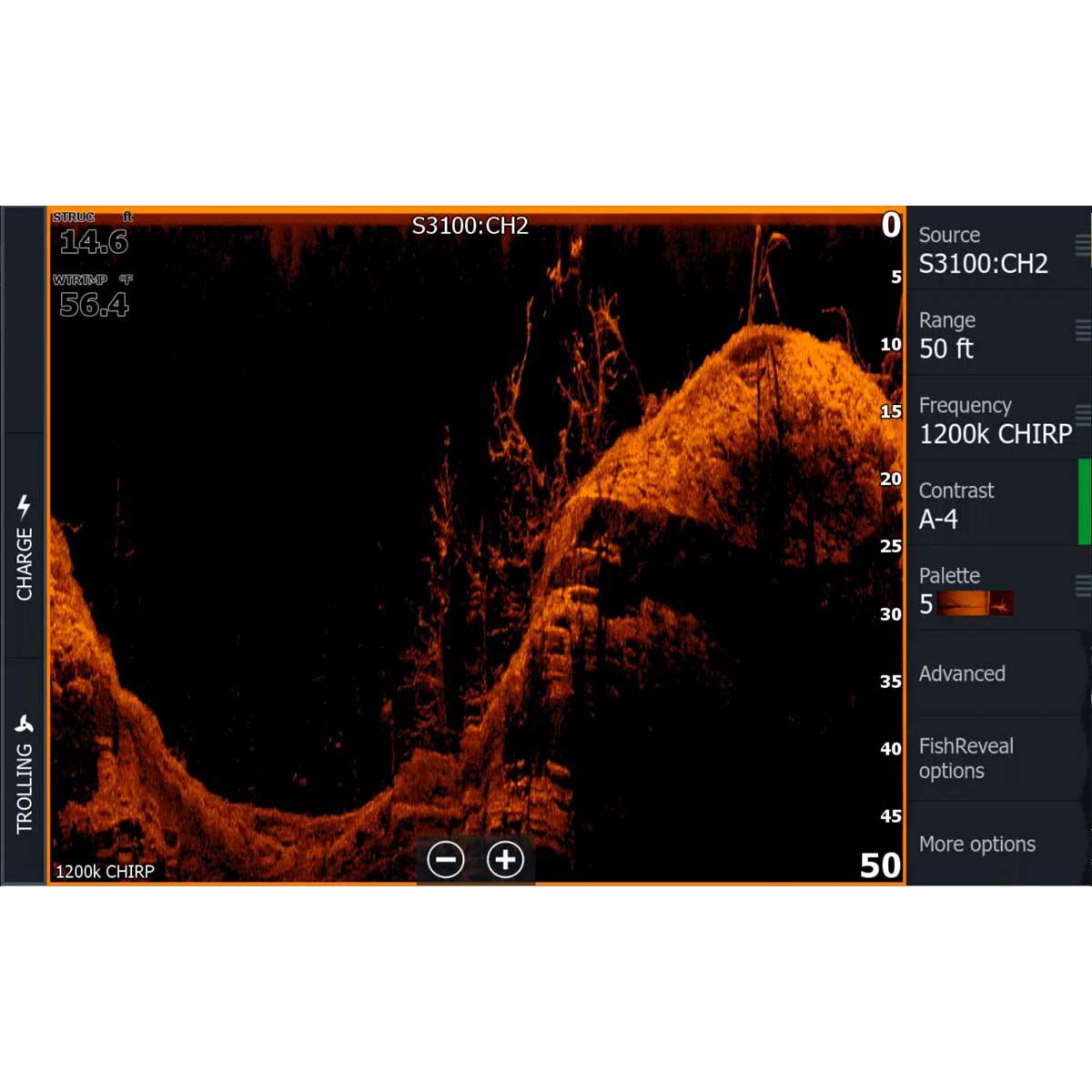

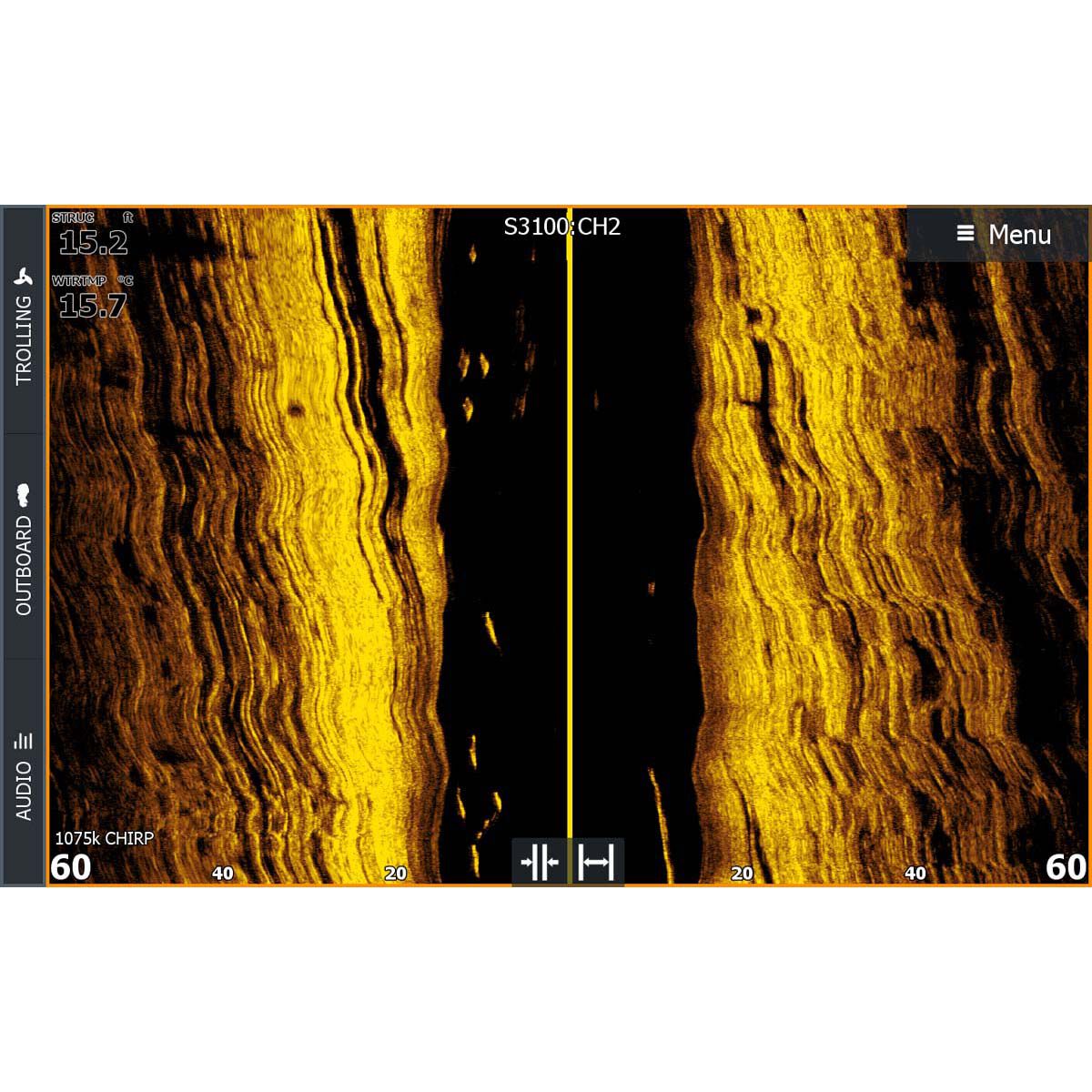

Coming complete with a 3-in-1 active imaging transducer, the Lowrance HDS PRO 12 inch sounder can be installed straight from the box. Providing traditional CHIRP, SideScan and DownScan sonars, anglers can receive an accurate underwater display around the entire boat. The HDS PRO also supports live imaging with an ActiveTarget™ transducer connected to the unit (sold separately). This imaging tech gives anglers a live, in-motion view of exactly what’s happening under the surface. A serious advantage for finding active fish and setting hooks!
At 12 inches, this sounder provides clear, sharp viewing from around the boat. The ultra HD multi-functional display is fully customisable to show multiple sonar options to suit your fishing style. It’s easy to read under direct sunlight, and the brightness can be adjusted to suit low light conditions for those fishing at night.
The HDS PRO range is pre-loaded with C-MAP charts for Australian and NZ waters, with the option to install additional mapping software on the unit. Genesis Live allows for real time mapping, which is beneficial when you’re exploring new fishing grounds. You can even data share with an existing Lowrance sounder to display maps, routes and marks across both units. For all marine mapping needs, the HDS PRO has you covered.
Coming complete with a 3-in-1 active imaging transducer, the Lowrance HDS PRO 12 inch sounder can be installed straight from the box. Providing traditional CHIRP, SideScan and DownScan sonars, anglers can receive an accurate underwater display around the entire boat. The HDS PRO also supports live imaging with an ActiveTarget™ transducer connected to the unit (sold separately). This imaging tech gives anglers a live, in-motion view of exactly what’s happening under the surface. A serious advantage for finding active fish and setting hooks!
Features
- Ultra HD 12 inch SolarMAXâ„¢ multi-touch display
- Screen size can be viewed at extreme angles and in direct sunlight
- Includes HD 1.2MHz 3-in-1 transducer (CHIRP, SideScan, DownScan)
- Can support two ActiveTarget systems for multiple views at the same time
- Pre-loaded with C-MAP Australian and NZ charts
- C-MAP Genesis Live allows for real time mapping functionality
- Compatible with Lowrance radars, trolling motors and autopilots
- NMEA2000, wireless and Bluetooth connectivity
- Waypoint, chart and sonar sharing is available through this unit
Tech Spec
LOWRANCE HDS PRO 12 LIVE COMBO INCLUDING ACTIVE-IMAGE 3-1 TRANSDUCER AND CMAP
SCREEN SIZE | 9 Inch SolarMAX HDS IPS |
---|---|
TOUCH SCREEN | Multitouch |
RESOLUTION | 1280 x 800 |
KEYPAD | 8-way directional keypad, pages, waypoint, exit, enter, zoom, menu, power |
BRIGHTNESS | >1200 nits |
INTEGRATED SONARS | CHIRP, Broadband, AI HD DownScan, AI HD SideScan, AI DownScan, AI SideScan |
ADDITIONAL SONAR COMPATIBILITIES | ActiveTarget™ 2, ActiveTarget™, S3100, SonarHub, StructureScan, ScructureScan HD, StructureScan 3D, LiveSight |
SONAR OUTPUT POWER | Independent dual 1kw capable depending on transducer |
MAX DEPTH | 5000ft (1524m) depending on transducer |
CHIRP SONAR FREQUENCIES | High, medium, low (depending on transducer) |
BROADBAND SONAR FREQUENCIES | 50kHz, 83kHz, 200kHz (depending on broadband transducer) |
ACTIVE IMAGE SONAR FREQUENCIES | 800kHz, 455kHz |
ACTIVE IMAGE HD SONAR FREQUENCIES | DownScan 700kHz CHIRP, 1200kHz Chirp, SideScan 455kHz CHIRP, 1075kHZ CHIRP |
AIS CHART AND RADAR OVERLAY | Yes |
OUTBOARD PILOT SUPPORT | Yes |
NAC-1 AND NAC-2 SUPPORT | Yes |
GHOST TROLLING MOTOR SUPPORT | Yes |
MOTORGUIDE XI5/XI3 SUPPORT | Yes (with MotorGuide PinPoint Gateway) |
INCLUDED CHARTS | AUS/NZ enhanced basemap |
SUPPORTED CHARTS | C-MAP REVEAL, C-MAP DISCOVER, C-MAP Genesis, Navionics, Lowrance Regional Mapping Partners |
INTERNAL STORAGE | 8GB Internal |
MULTIMEDIA | SoniHub, SonicHub2, FusionLink products, NMEA2000 compliant marine audio products |
RADAR COMPATIBILITY | HALO 20/20+/24, HALO 3'/4'/6' |
COMPASS SAFE DISTANCE | 12' (300mm) |
WAYPOINTS, ROUTES AND TRACKS | 3000 waypoints, 100 routes, 100 trails with up to 10000 points per trail |
NMEA 2000 CONNECTIVITY | 1 port (micro-c connector) |
NMEA 0183 CONNECTIVITY | 1 port (via power connector) |
SONAR CONNECTIVITY | 2 ports |
ANALOG VIDEO CONNECTIVITY | 1 port (via power cable, adaptor cable sold separately) |
ETHERNET CONNECTIVITY | 2 100 Mbit ports (5-pin connector), supports up to 6 MFDs on a network |
CARD READER CONNECTIVITY | 2 slots (micro SD SDXC) up to 32GB |
WIFI CONNECTIVITY | Internal 82.11 b/g/n and compatible WIFI-1 module |
BLUETOOTH CONNECTIVITY | Bluetooth 4.0 with support for Bluetooth classic |
SUPPLY VOLTAGE | 12V DV (10.8-17 V DC) |
POWER CONSUMPTION | 47.7 W (3.6 A at 13.8 V DC) |
RECOMMENDED FUSE RATING | 5A |
MOUNTING TYPE | Panel mount or bracket mount |
COMPASS SAFE DISTANCE | 50cm (1.6ft) |
WATERPROOF RATING | IPX7 with card door closed |
