Take your fishing to another level with the Lowrance HDS PRO 9 inch sounder combo. Packed with the best marine tech, the fishing and boating opportunities are endless with this sounder installed on your boat.

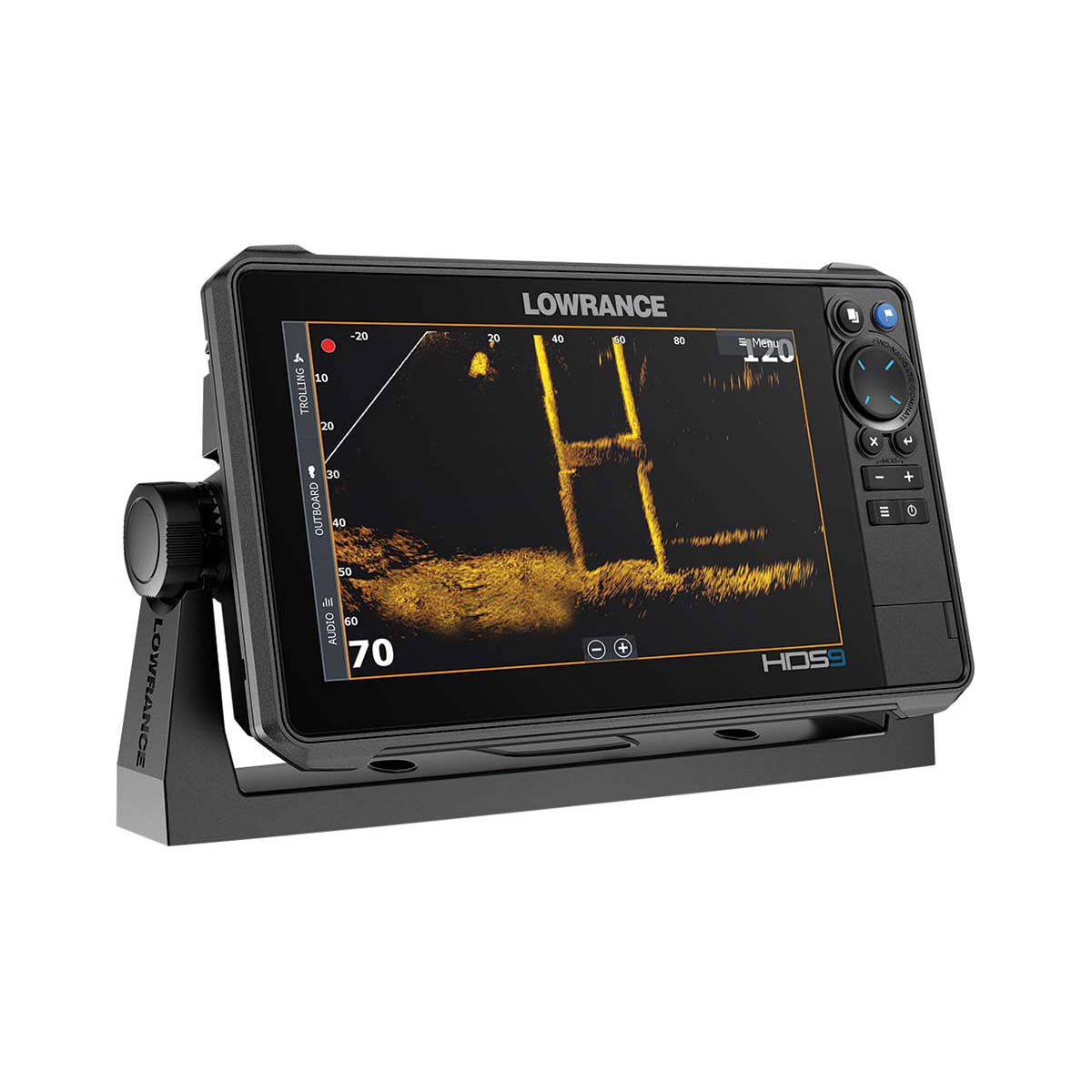

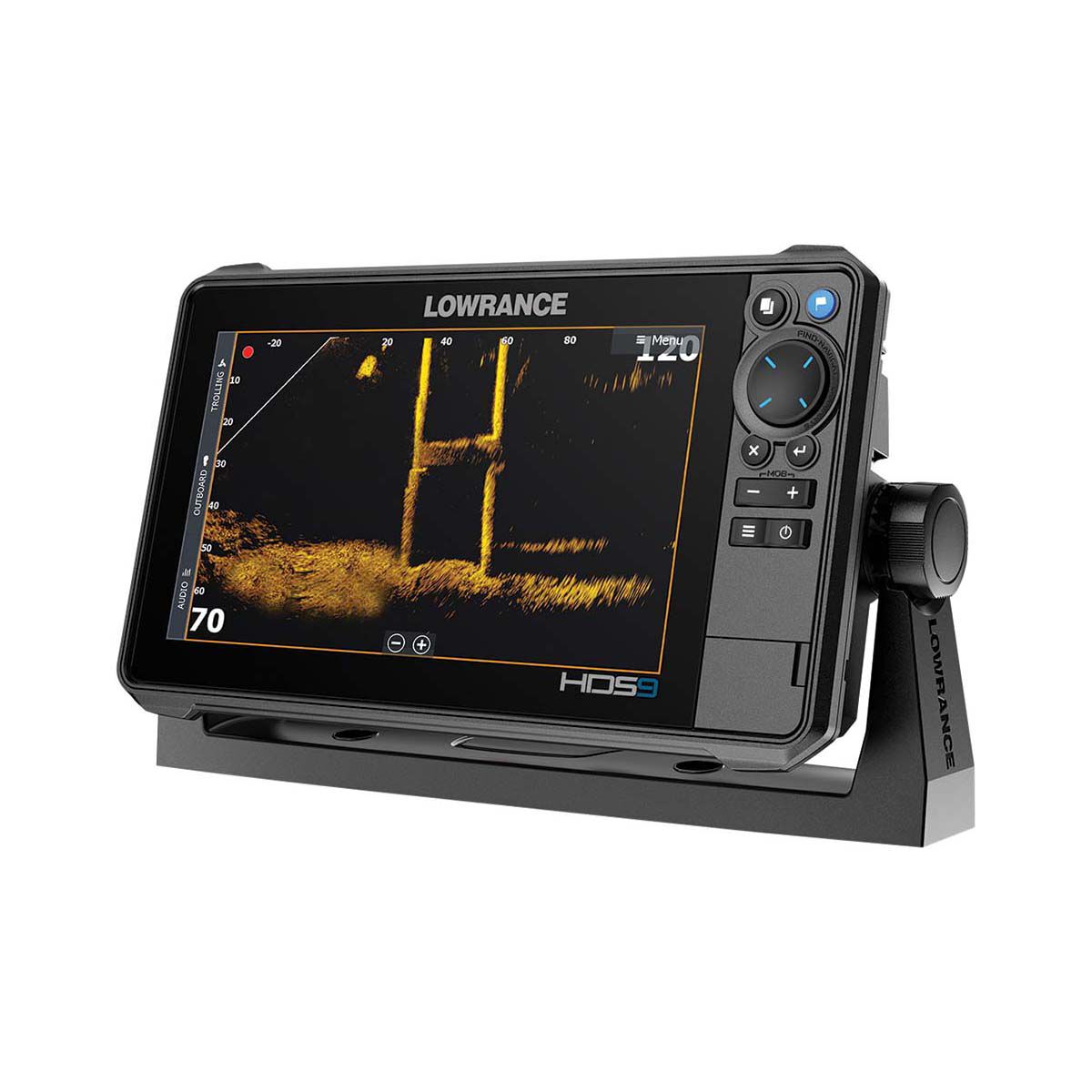

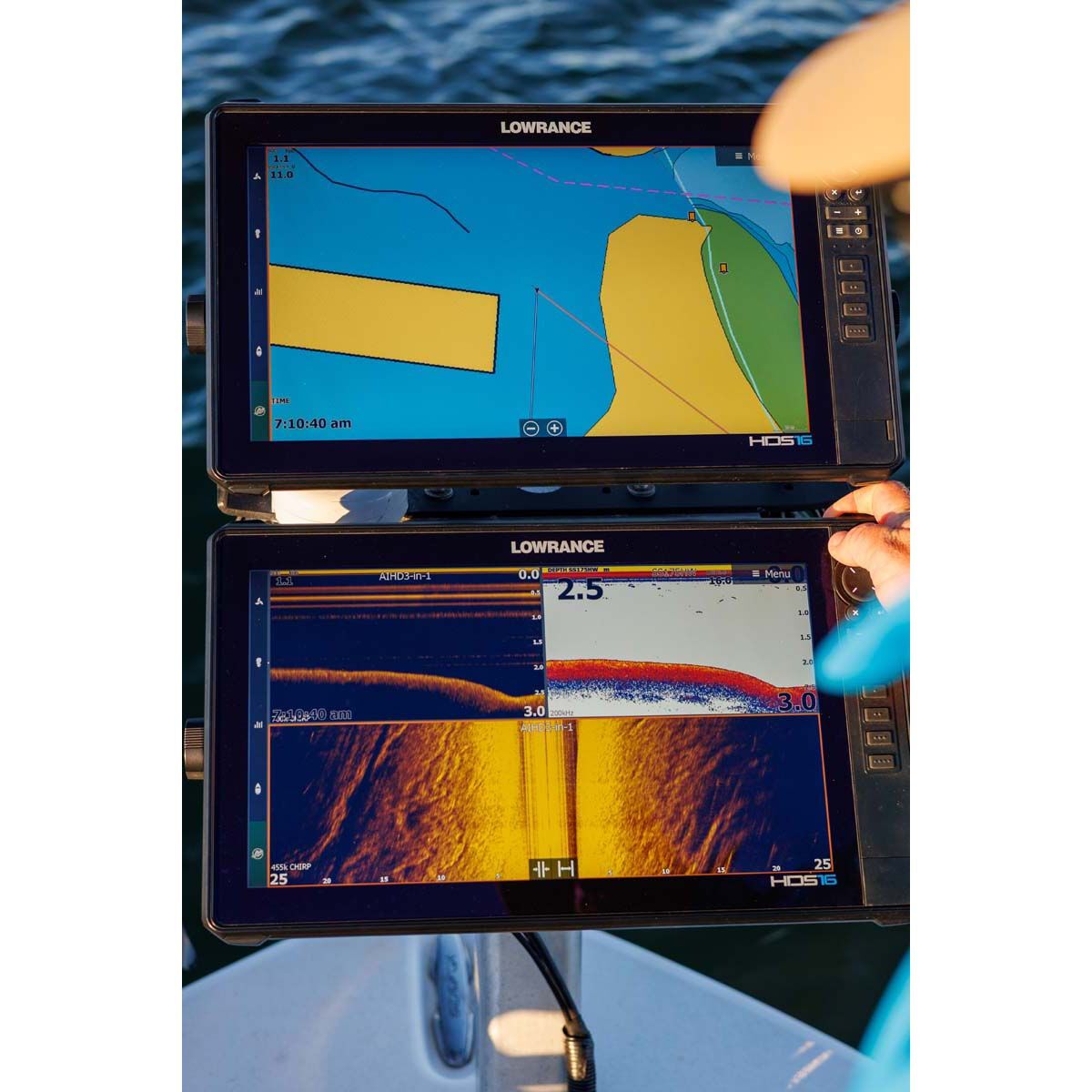

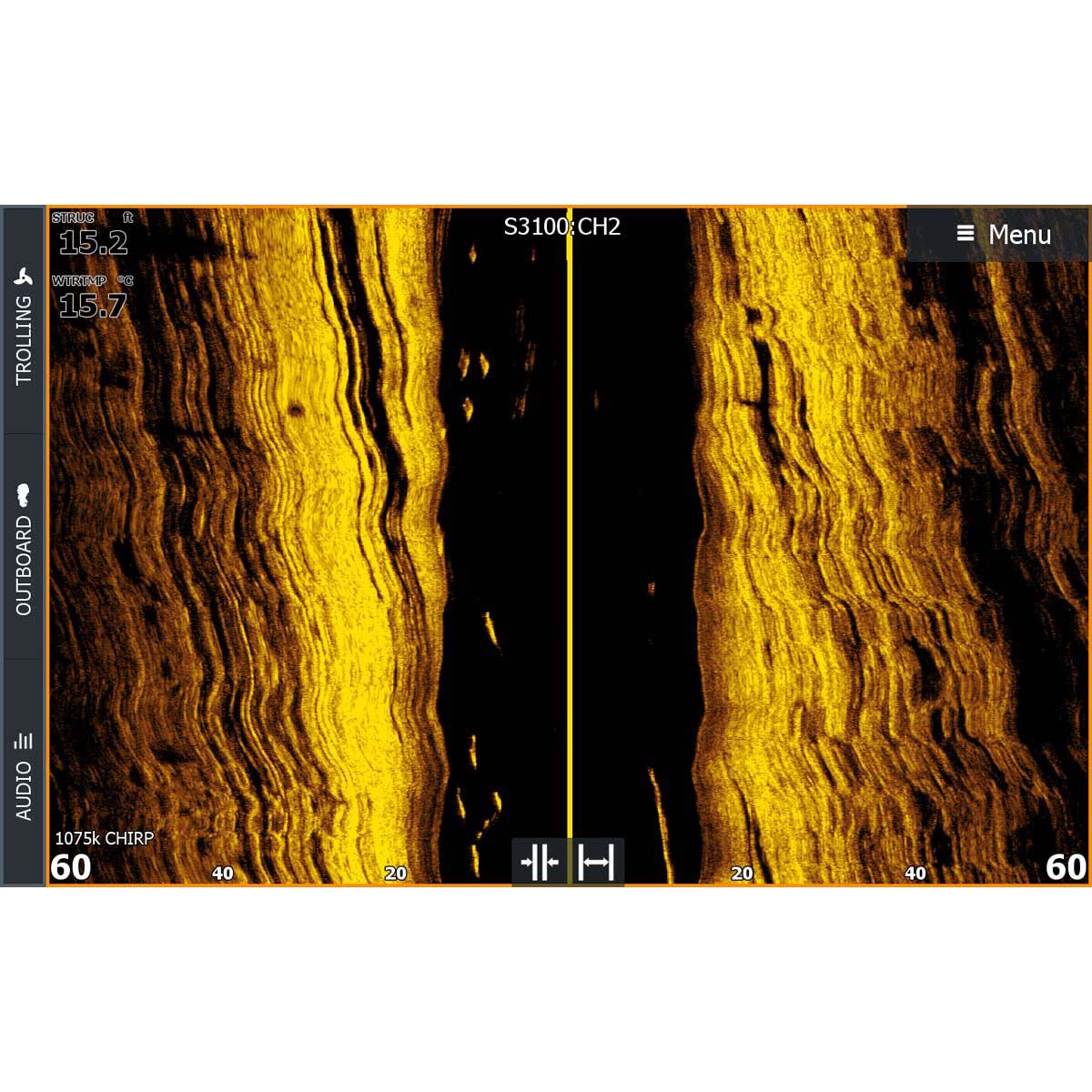

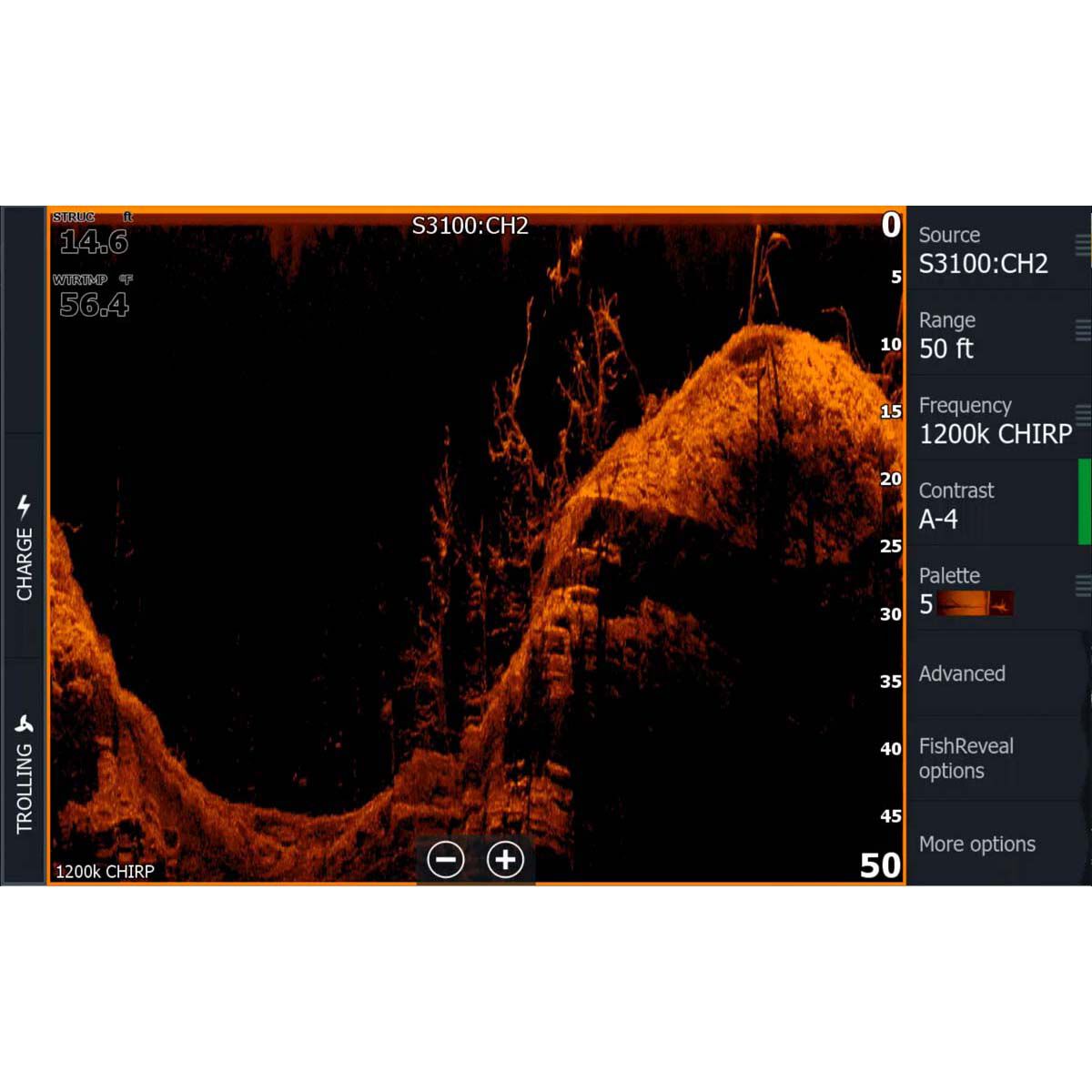

The HDS PRO features an ultra HD 9 inch SolarMAX display that can be easily viewed at all angles, as well as direct sunlight. The unit comes with a 1.2MHz 3-in-1 transducer, offering traditional CHIRP, DownScan and SideScan sonars. With an additional ActiveTarget™ transducer, the HDS PRO range supports live imaging and can even show multiple sonar views at the same time.
C-MAP Australian and NZ charts are pre-loaded into the HDS PRO 9 inch sounder combo, with Genesis Live mapping also available to discover your own spots. It’s also compatible with all Lowrance marine technologies, including radars, autopilots and electric motors. You can even data share maps, routes and marks with other Lowrance sounders using your HDS PRO.

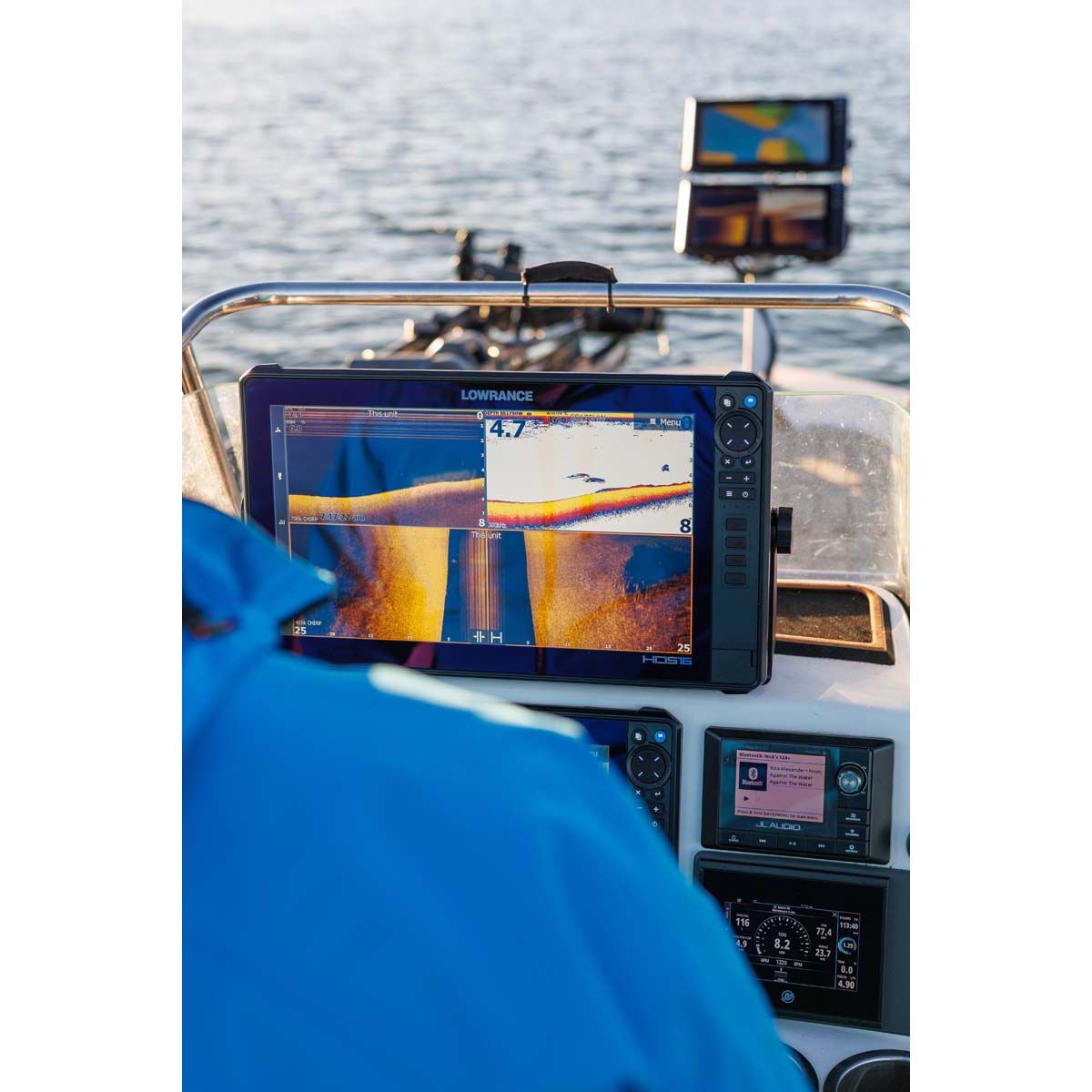

This 9 inch model is a great option for smaller vessels and those anglers needing a compact unit with limited dash space. It’s also perfectly suited at the front of casting decks to keep an eye on what’s lurking below. A cracking Lowrance sounder combo that has everything you need to catch more fish!
Features
- Ultra HD 9 inch SolarMAX™ multi-touch display
- Screen size can be viewed at extreme angles and in direct sunlight

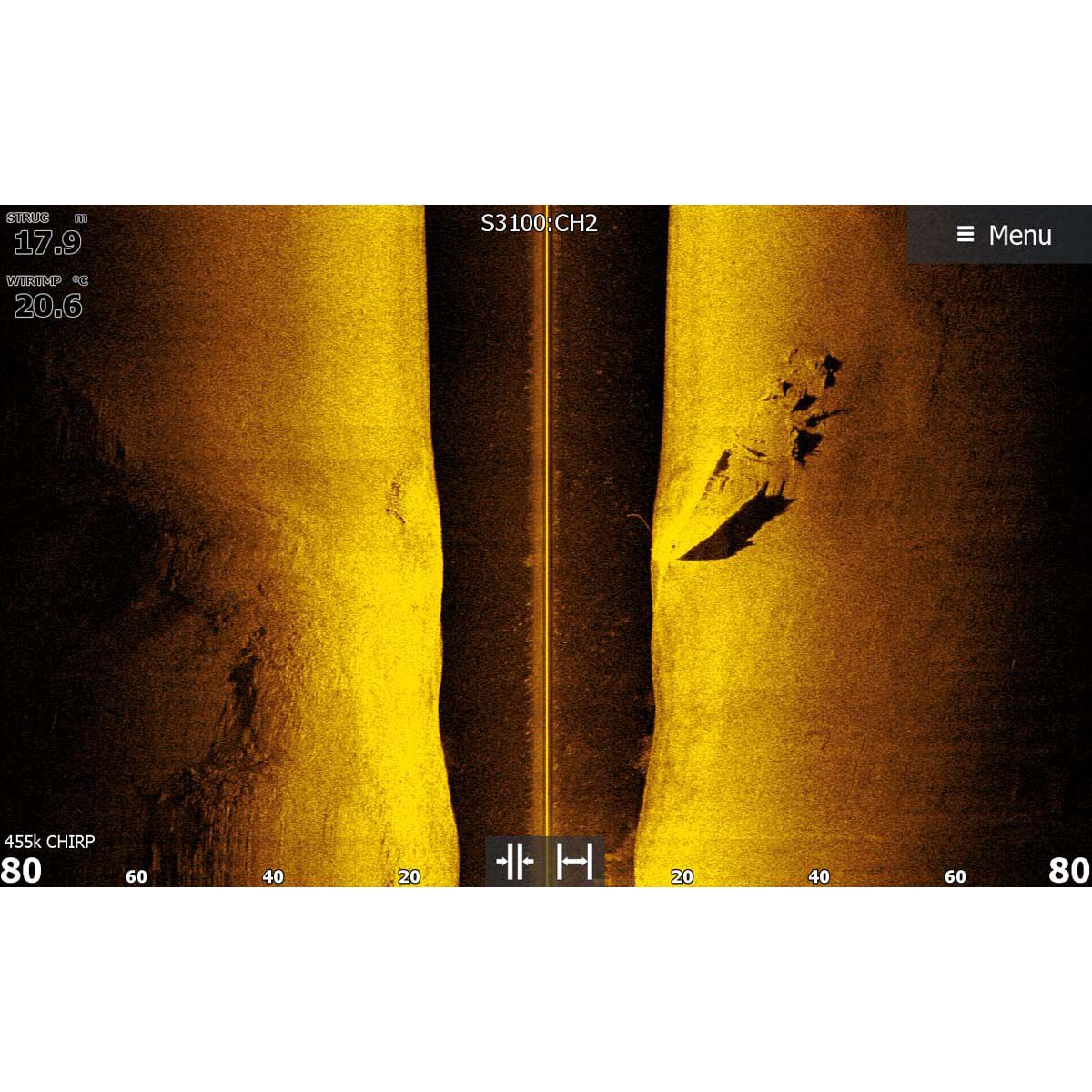

- Includes HD 1.2MHz 3-in-1 transducer (CHIRP, SideScan, DownScan)

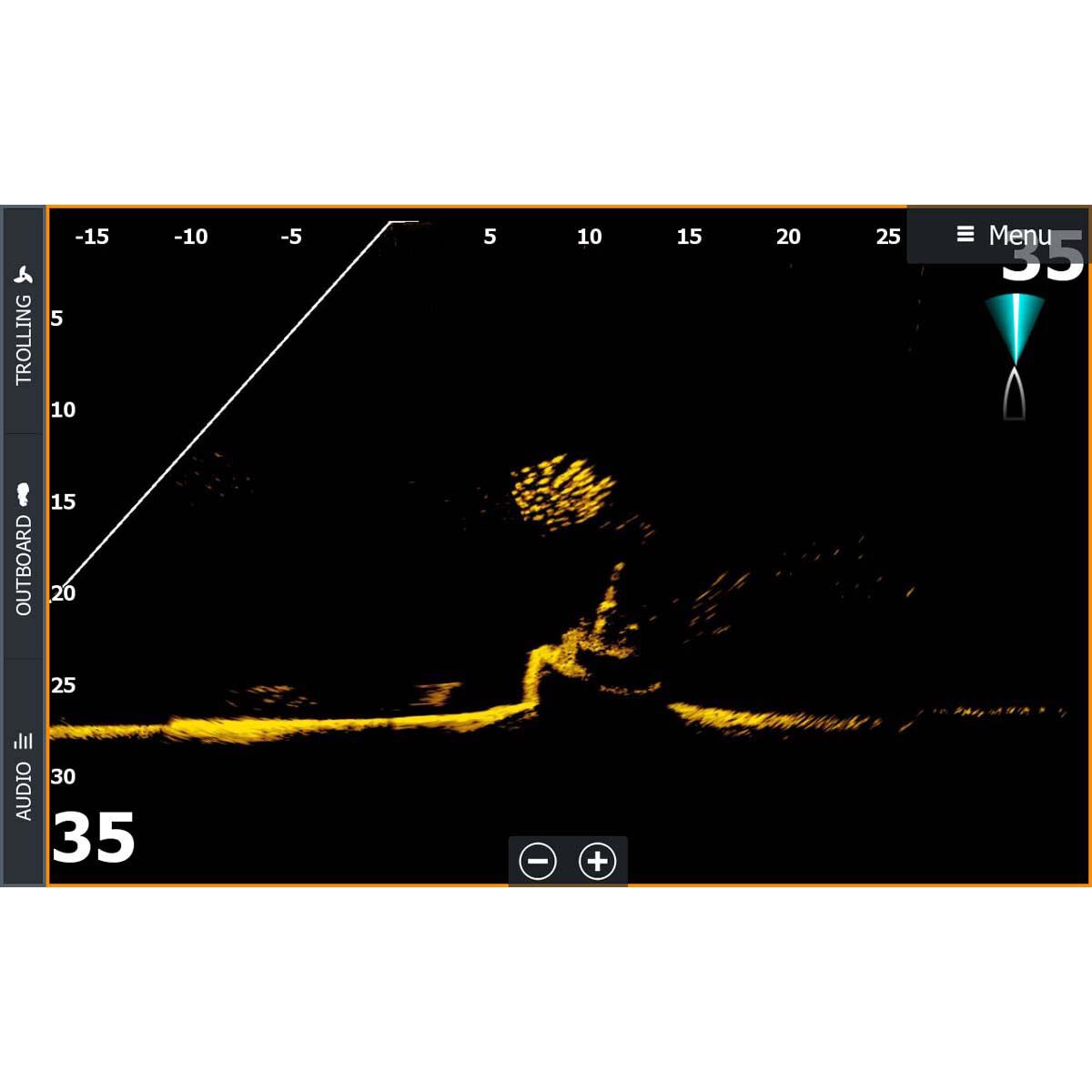

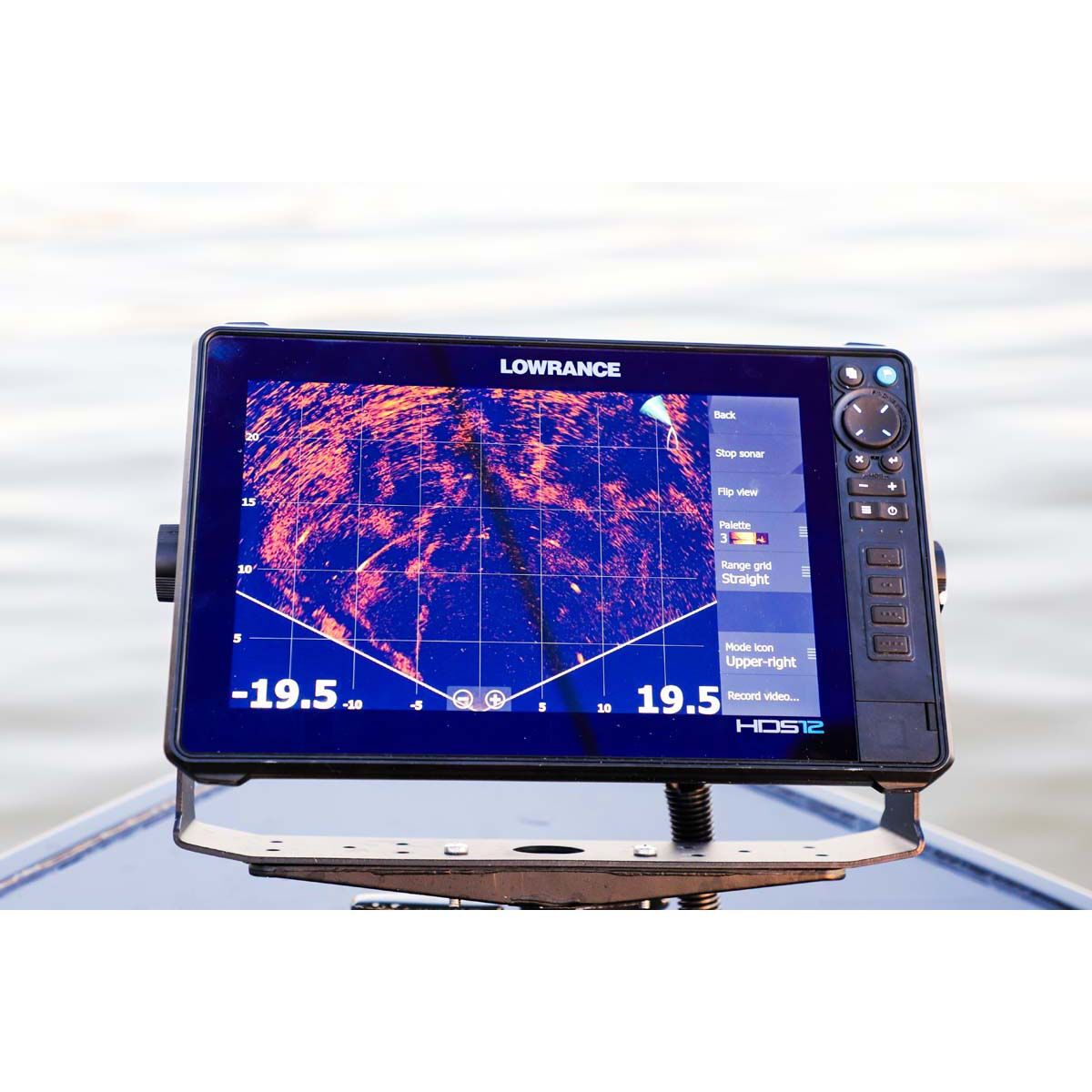

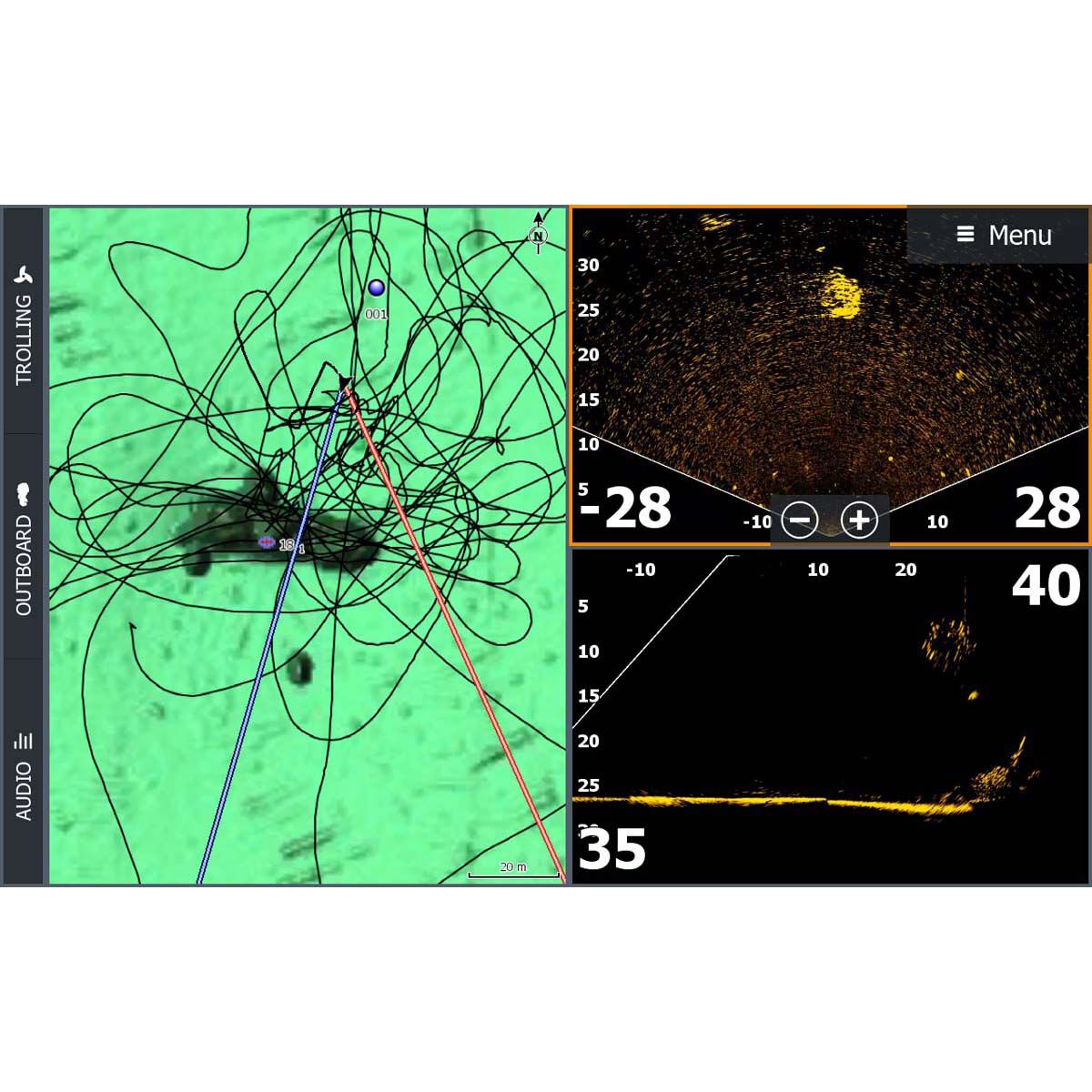

- Can support two ActiveTarget systems for multiple views at the same time
- Pre-loaded with C-MAP Australian and NZ charts
- C-MAP Genesis Live allows for real time mapping functionality
- Compatible with Lowrance radars, trolling motors and autopilots
- NMEA2000, wireless and Bluetooth connectivity
- Waypoint, chart and sonar sharing is available through this unit
Tech Spec
| SCREEN SIZE | 9 Inch SolarMAX HDS IPS |
|---|---|
| TOUCH SCREEN | Multitouch |
| RESOLUTION | 1280 x 720 |
| KEYPAD | 8-way directional keypad, pages, waypoint, exit, enter, zoom, menu, power |
| BRIGHTNESS | >1200 nits |
| INTEGRATED SONARS | CHIRP, Broadband, AI HD DownScan, AI HD SideScan, AI DownScan, AI SideScan |
| ADDITIONAL SONAR COMPATIBILITIES | ActiveTarget™ 2, ActiveTarget™, S3100, SonarHub, StructureScan, ScructureScan HD, StructureScan 3D, LiveSight |
| SONAR OUTPUT POWER | Independent dual 1kw capable depending on transducer |
| MAX DEPTH | 5000ft (1524m) depending on transducer |
| CHIRP SONAR FREQUENCIES | High, medium, low (depending on transducer) |
| BROADBAND SONAR FREQUENCIES | 50kHz, 83kHz, 200kHz (depending on broadband transducer) |
| ACTIVE IMAGE SONAR FREQUENCIES | 800kHz, 455kHz |

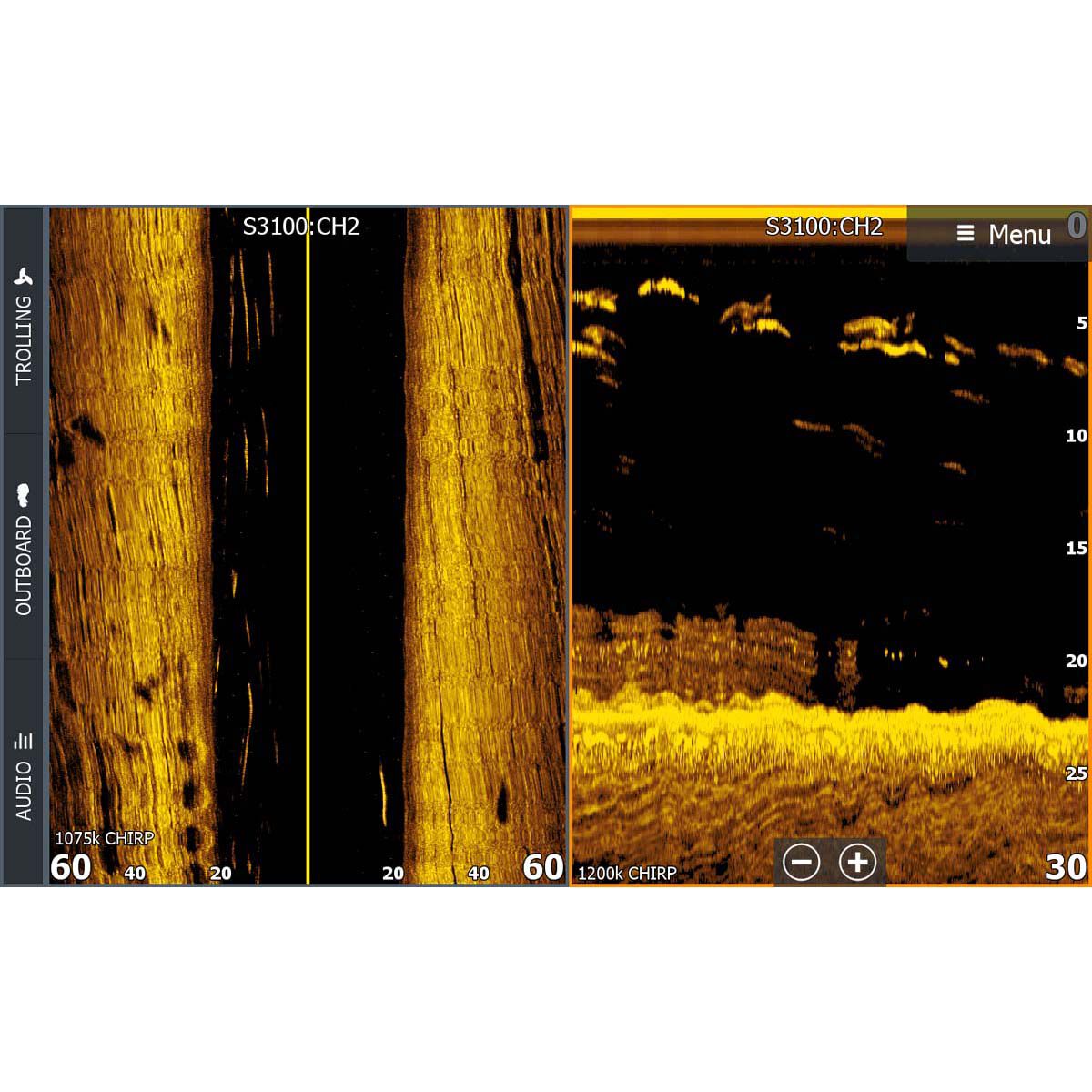

| ACTIVE IMAGE HD SONAR FREQUENCIES | DownScan 700kHz CHIRP, 1200kHz Chirp, SideScan 455kHz CHIRP, 1075kHZ CHIRP |
| AIS CHART AND RADAR OVERLAY | Yes |
| OUTBOARD PILOT SUPPORT | Yes |
| NAC-1 AND NAC-2 SUPPORT | Yes |
| GHOST TROLLING MOTOR SUPPORT | Yes |
| MOTORGUIDE XI5/XI3 SUPPORT | Yes (with MotorGuide PinPoint Gateway) |
| INCLUDED CHARTS | AUS/NZ enhanced basemap |
| SUPPORTED CHARTS | C-MAP REVEAL, C-MAP DISCOVER, C-MAP Genesis, Navionics, Lowrance Regional Mapping Partners |
| INTERNAL STORAGE | 8GB Internal |
| MULTIMEDIA | SoniHub, SonicHub2, FusionLink products, NMEA2000 compliant marine audio products |
| RADAR COMPATIBILITY | HALO 20/20+/24, HALO 3'/4'/6' |
| COMPASS SAFE DISTANCE | 12' (300mm) |
| WAYPOINTS, ROUTES AND TRACKS | 3000 waypoints, 100 routes, 100 trails with up to 10000 points per trail |
| NMEA 2000 CONNECTIVITY | 1 port (micro-c connector) |
| NMEA 0183 CONNECTIVITY | 1 port (via power connector) |
| SONAR CONNECTIVITY | 2 ports |
| ANALOG VIDEO CONNECTIVITY | 1 port (via power cable, adaptor cable sold separately) |
| ETHERNET CONNECTIVITY | 2 100 Mbit ports (5-pin connector), supports up to 6 MFDs on a network |
| CARD READER CONNECTIVITY | 2 slots (micro SD SDXC) up to 32GB |
| WIFI CONNECTIVITY | Internal 82.11 b/g/n and compatible WIFI-1 module |
| BLUETOOTH CONNECTIVITY | Bluetooth 4.0 with support for Bluetooth classic |
| SUPPLY VOLTAGE | 12V DV (10.8-17 V DC) |
| POWER CONSUMPTION | 40 W (2.9 A at 13.8 V DC) |
| RECOMMENDED FUSE RATING | 0.125 |
| MOUNTING TYPE | Panel mount or bracket mount |
| COMPASS SAFE DISTANCE | 50cm (1.6ft) |
| WATERPROOF RATING | IPX7 with card door closed |
