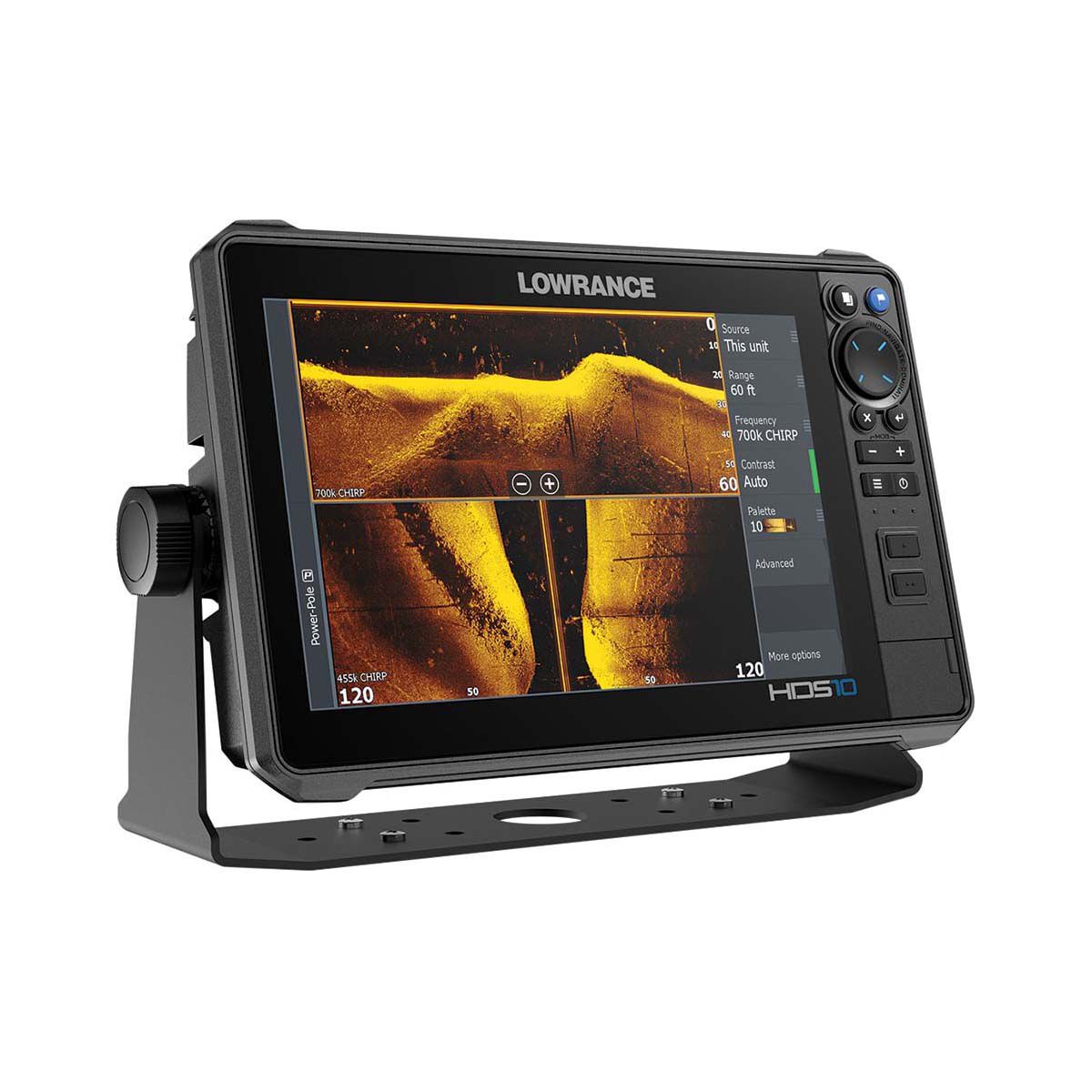

Find more fish with the Lowrance HDS PRO 10 inch sounder combo. Featuring a HD head unit, 3-in-1 transducer, C-MAP charts and various compatibility options, it has everything you need in a quality fishfinder combo.

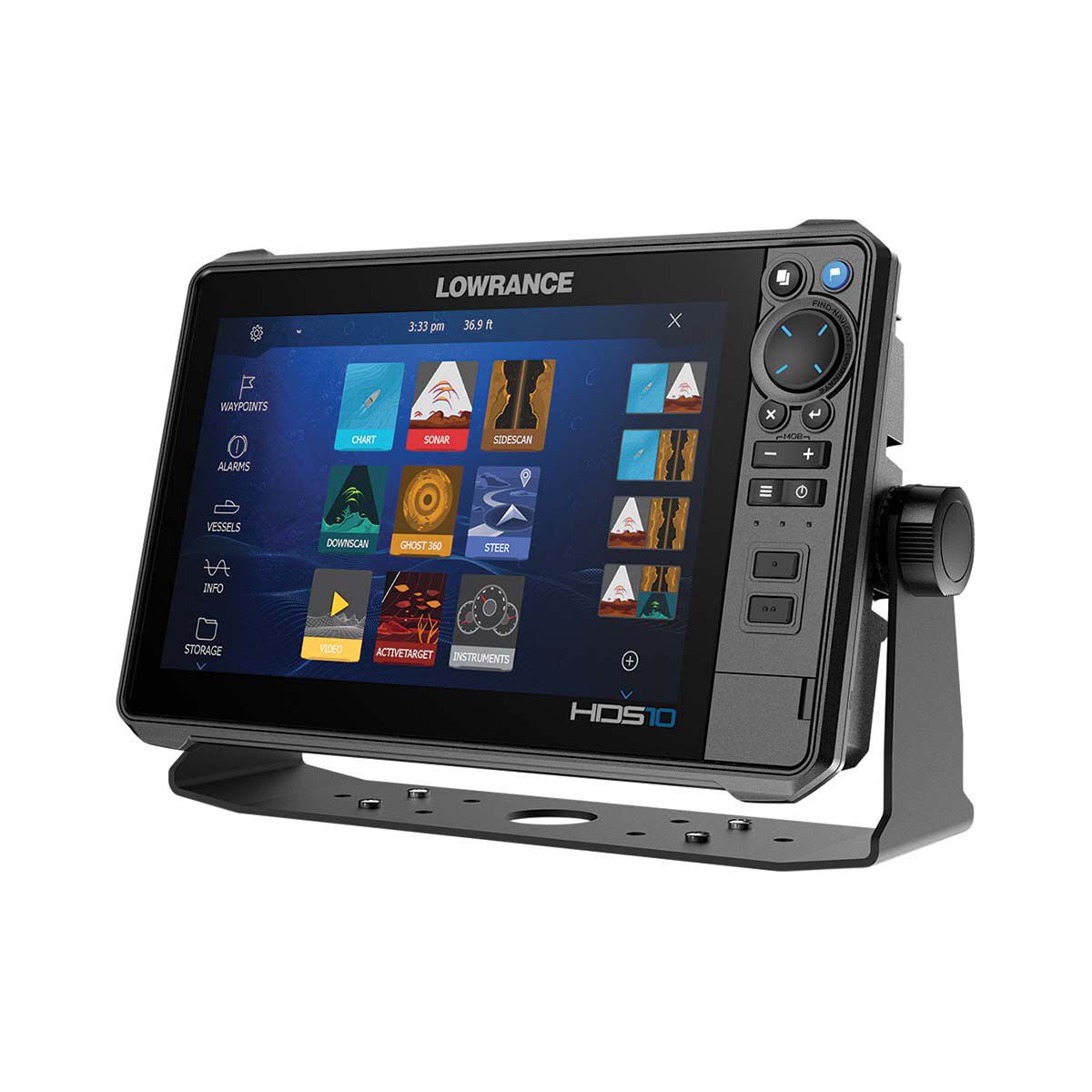

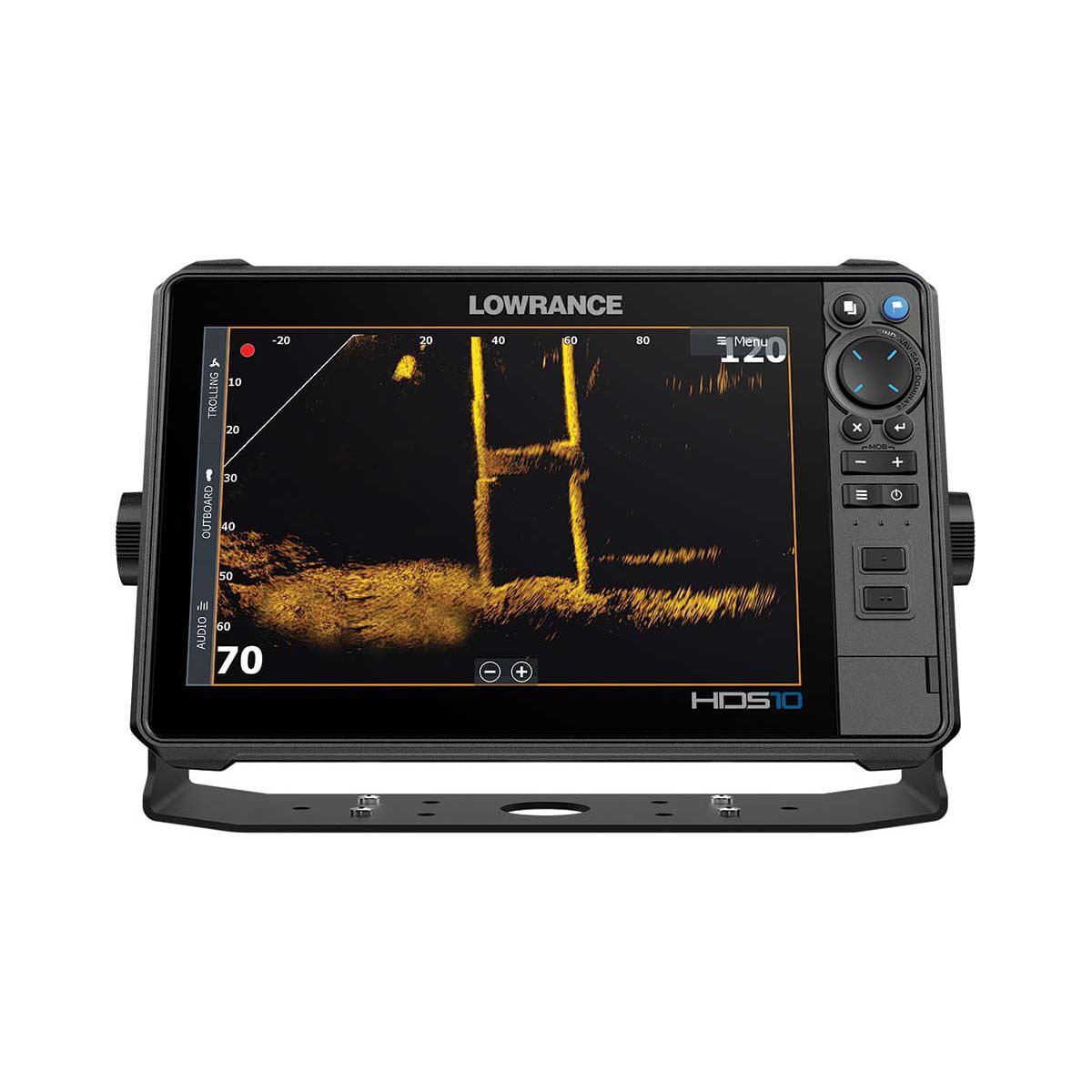

A new size to the HDS series, the ultra HD 10 inch display provides sharp, clear screen readings at all times. The screen display can be fully customised to show several sonar options at the same time. It’s also easy to read in glare, direct sunlight and with polarised glasses. And for anglers fishing at night, the brightness can be adjusted to suit the low light conditions.

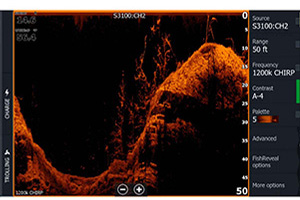

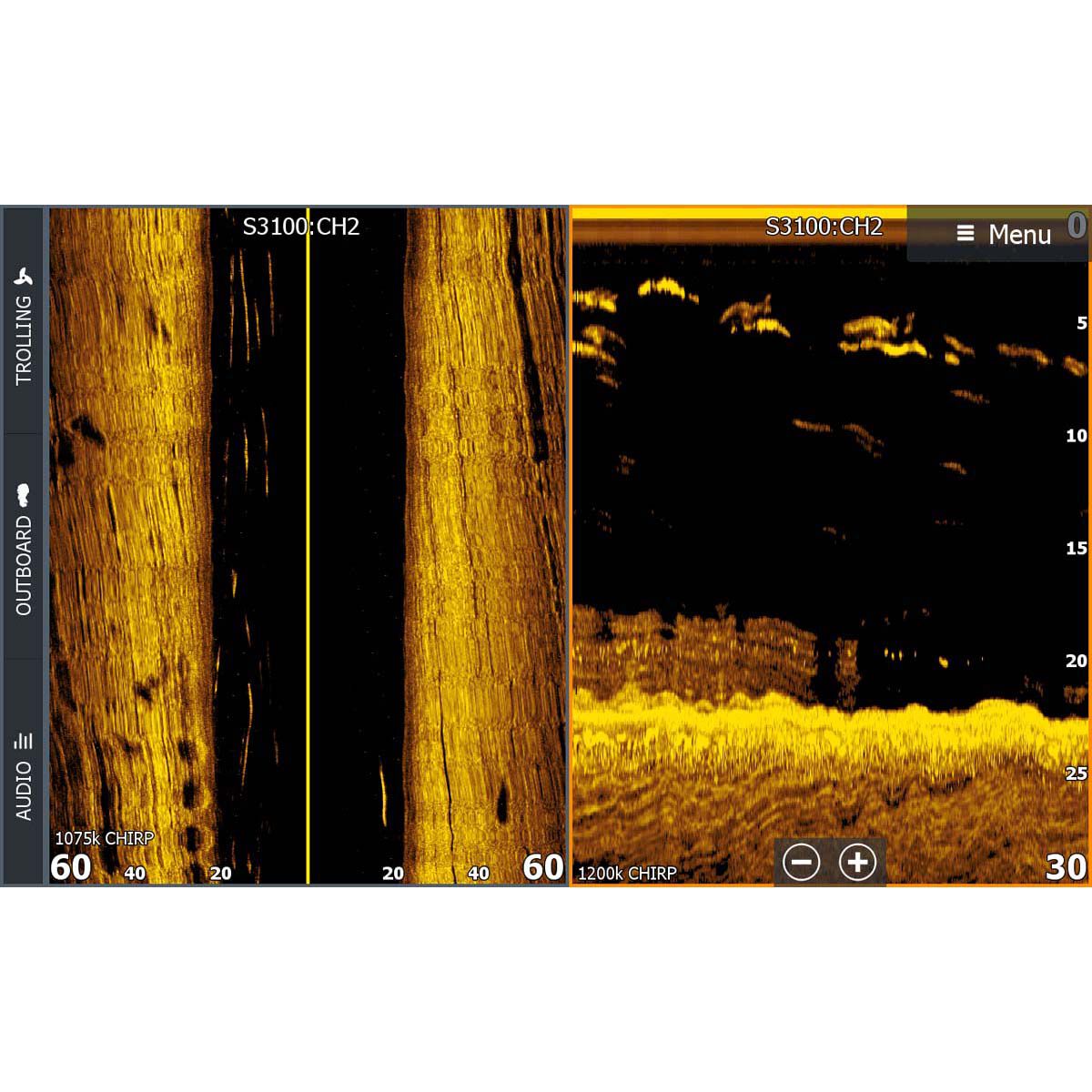

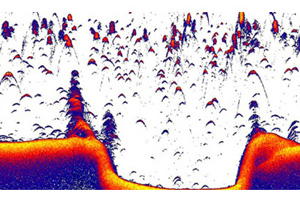

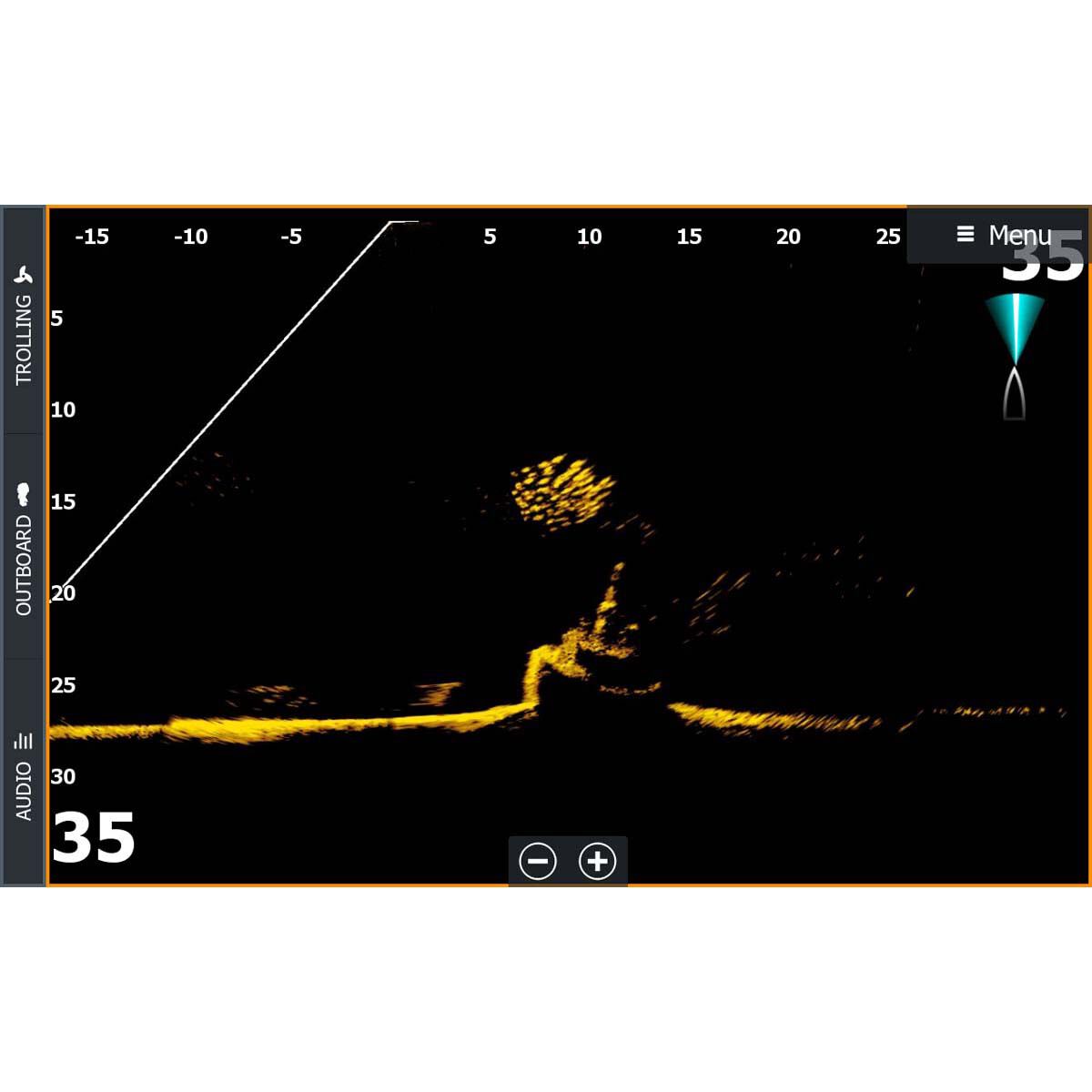

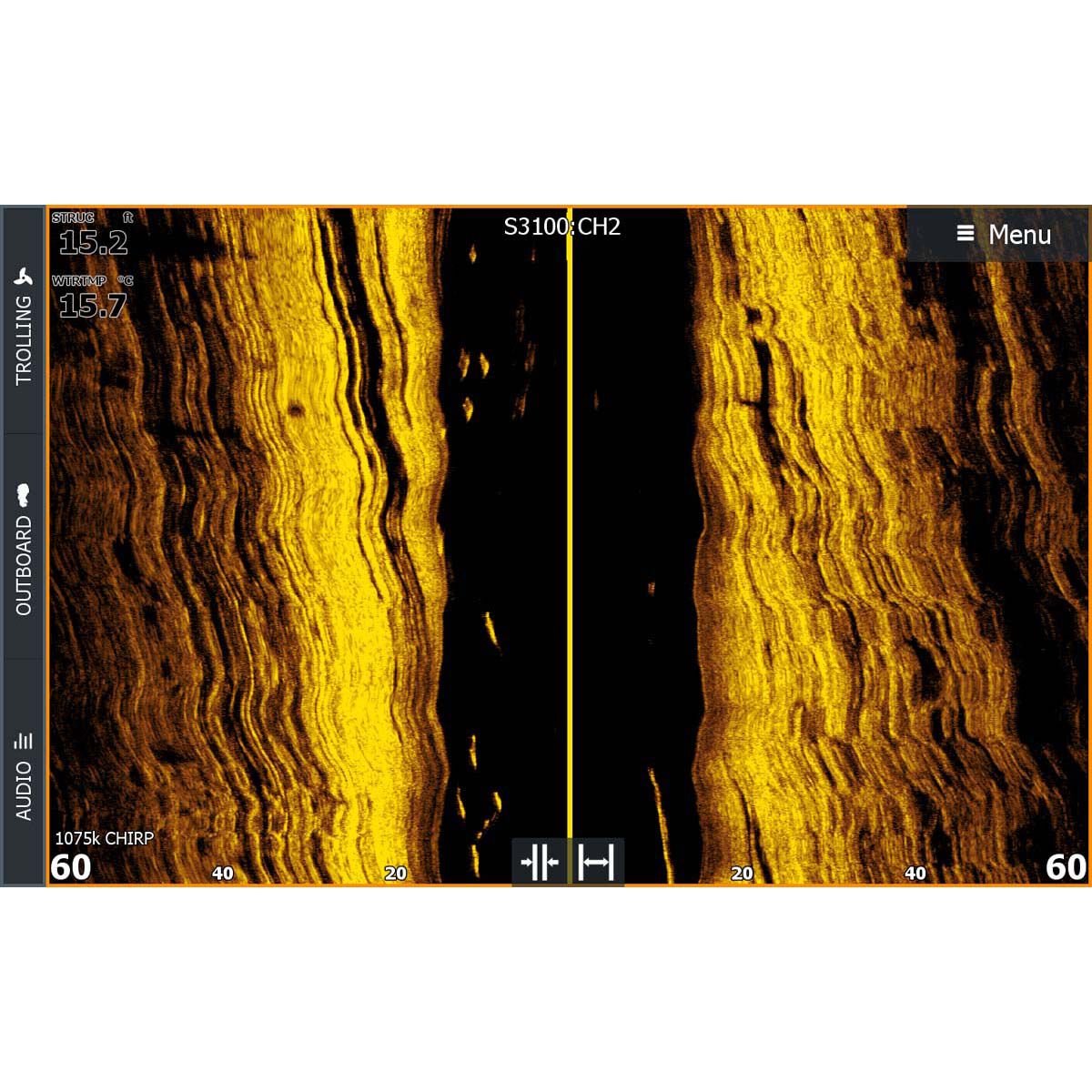

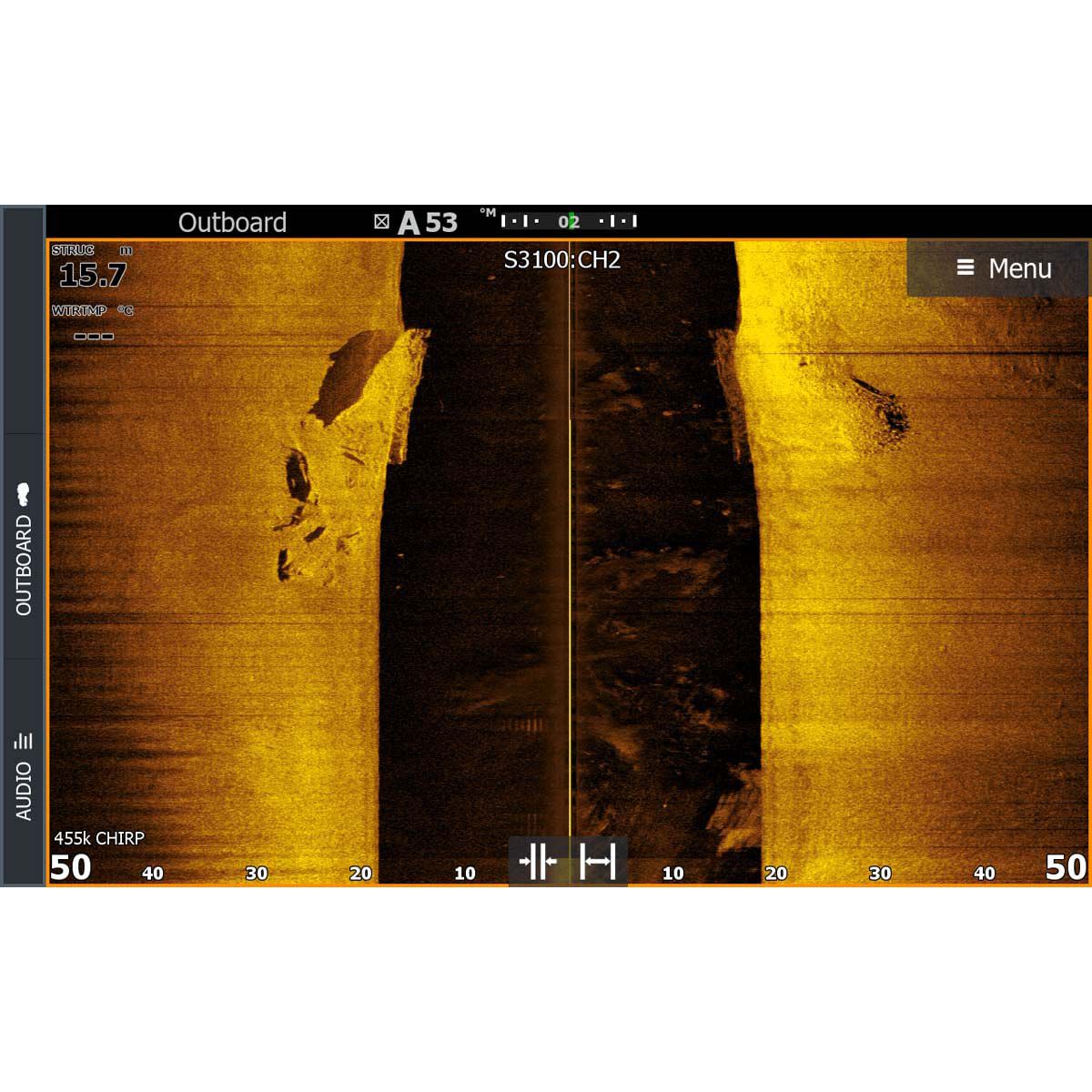

The included 1.2MHz 3-in-1 active imaging transducer provides traditional CHIRP, SideScan and DownScan sonar options for accurate viewing around the entire boat. The HDS PRO also supports live imaging with an additional ActiveTarget™ transducer (not included). With live imaging technology, anglers receive an accurate, in-motion view of what’s happening around the boat.

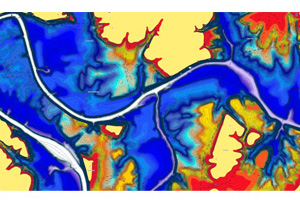

The HDS PRO comes pre-loaded with C-MAP charts for Australian and NZ waters. There’s also Genesis live mapping functionality for anglers exploring new grounds and fishing spots. Supporting existing Lowrance technology, NMEA 2000 compatibility and data sharing between units, it’s an all-in-one unit suited to serious Aussie fishos. With a 10 inch screen size, this unit is great for anglers needing a compact sounder with a screen big enough to view from around the boat.
Features

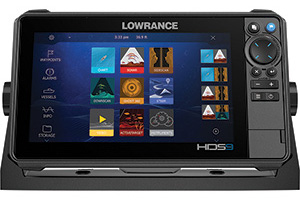

- New Ultra HD 10 inch SolarMAXâ„¢ multi-touch display
- Screen size can be viewed at extreme angles and in direct sunlight
- Includes HD 1.2MHz 3-in-1 transducer (CHIRP, SideScan, DownScan)

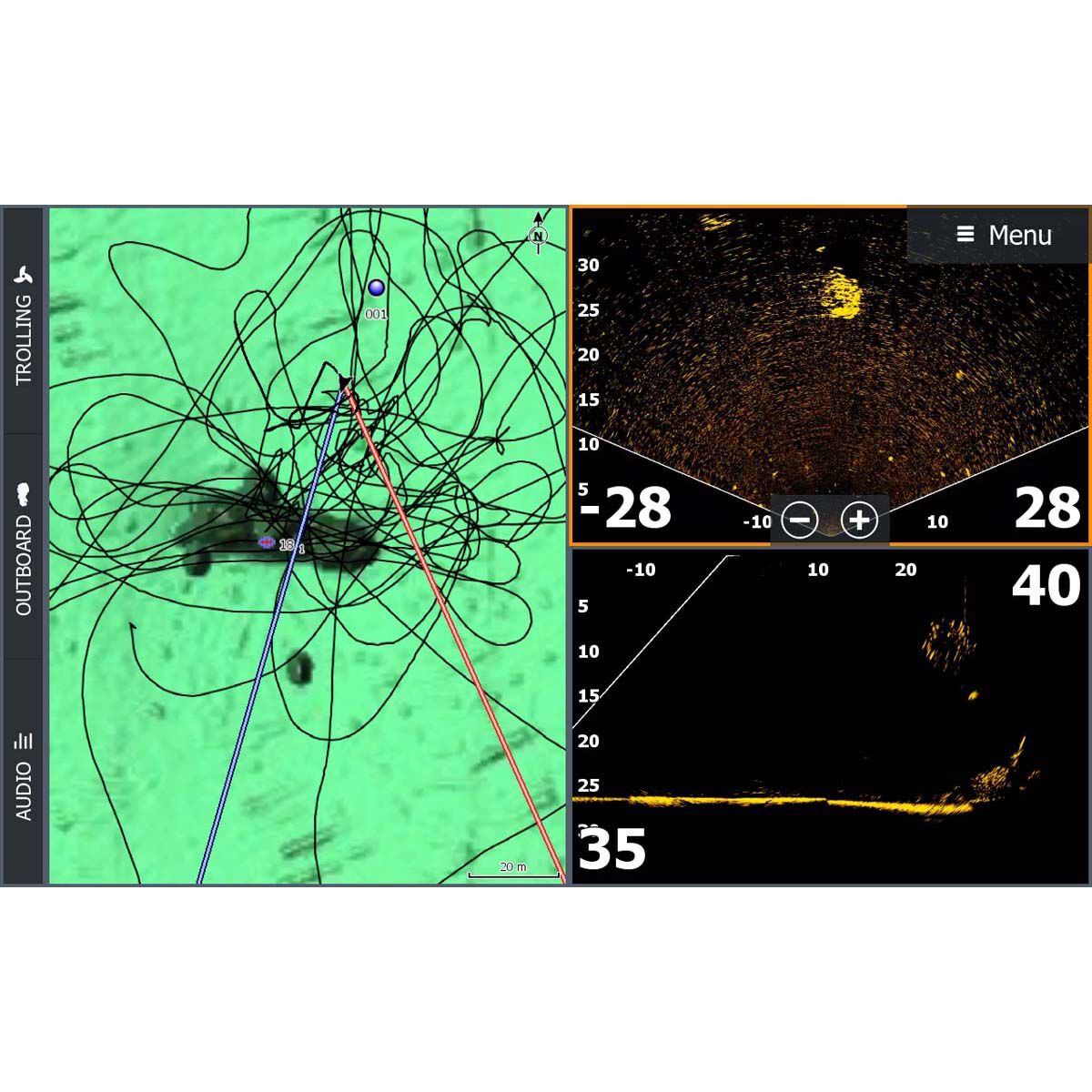

- Can support two ActiveTarget systems for multiple views at the same time
- Pre-loaded with C-MAP Australian and NZ charts

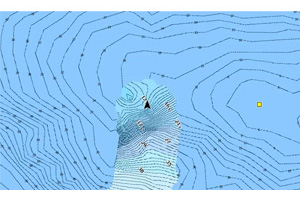

- C-MAP Genesis Live allows for real time mapping functionality

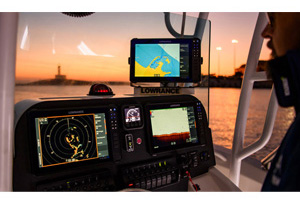

- Compatible with Lowrance radars, trolling motors and autopilots
- NMEA2000, wireless and Bluetooth connectivity

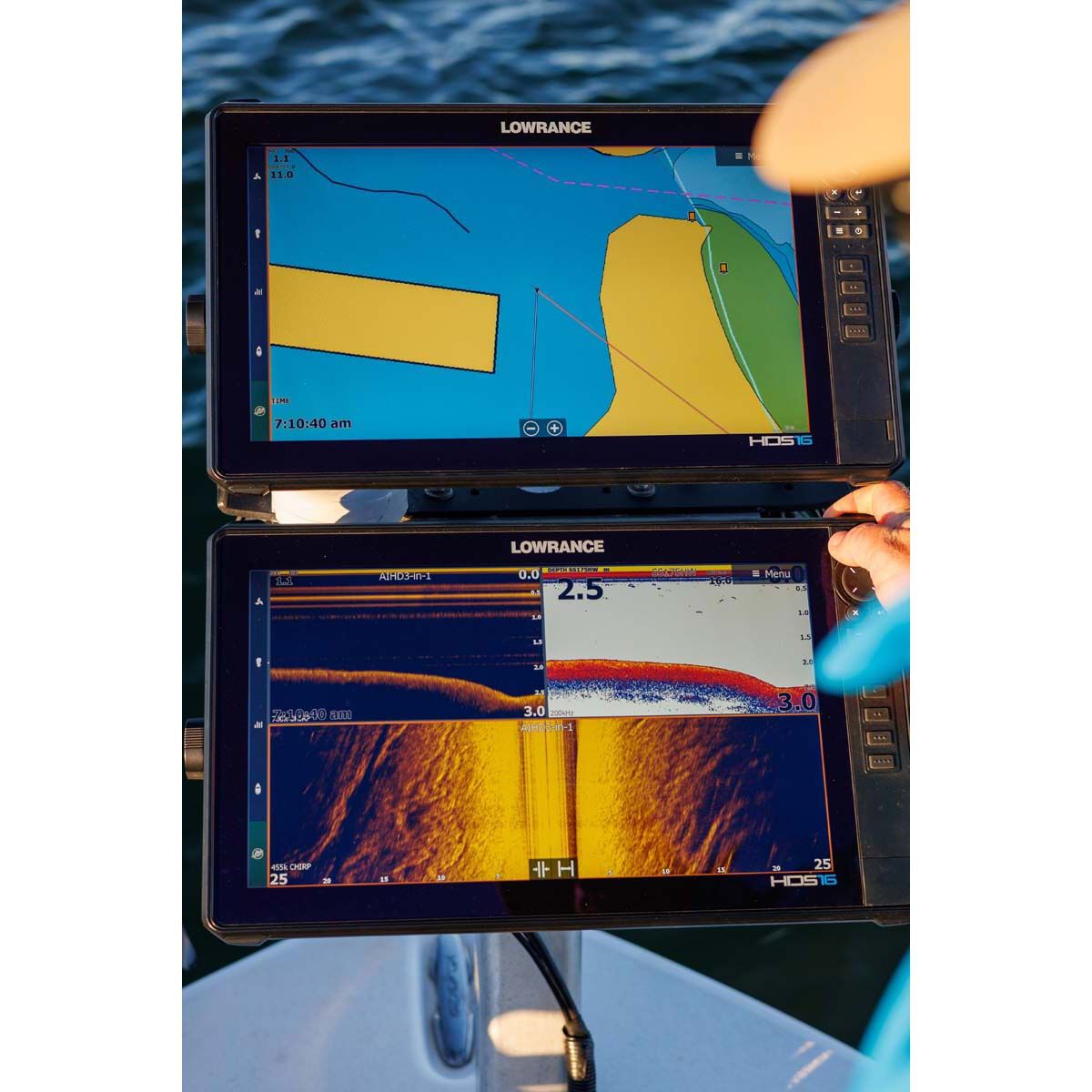

- Waypoint, chart and sonar sharing is available through this unit
Tech Spec
SCREEN SIZE | 10 Inch SolarMAX HDS IPS |
---|---|
TOUCH SCREEN | Multitouch |
RESOLUTION | 1280 x 720 |
KEYPAD | 8-way directional keypad, pages, waypoint, exit, enter, zoom, menu, power |
BRIGHTNESS | >1200 nits |
INTEGRATED SONARS | CHIRP, Broadband, AI HD DownScan, AI HD SideScan, AI DownScan, AI SideScan |
ADDITIONAL SONAR COMPATIBILITIES | ActiveTarget™ 2, ActiveTarget™, S3100, SonarHub, StructureScan, ScructureScan HD, StructureScan 3D, LiveSight |
SONAR OUTPUT POWER | Independent dual 1kw capable depending on transducer |
MAX DEPTH | 5000ft (1524m) depending on transducer |
CHIRP SONAR FREQUENCIES | High, medium, low (depending on transducer) |
BROADBAND SONAR FREQUENCIES | 50kHz, 83kHz, 200kHz (depending on broadband transducer) |
ACTIVE IMAGE SONAR FREQUENCIES | 800kHz, 455kHz |

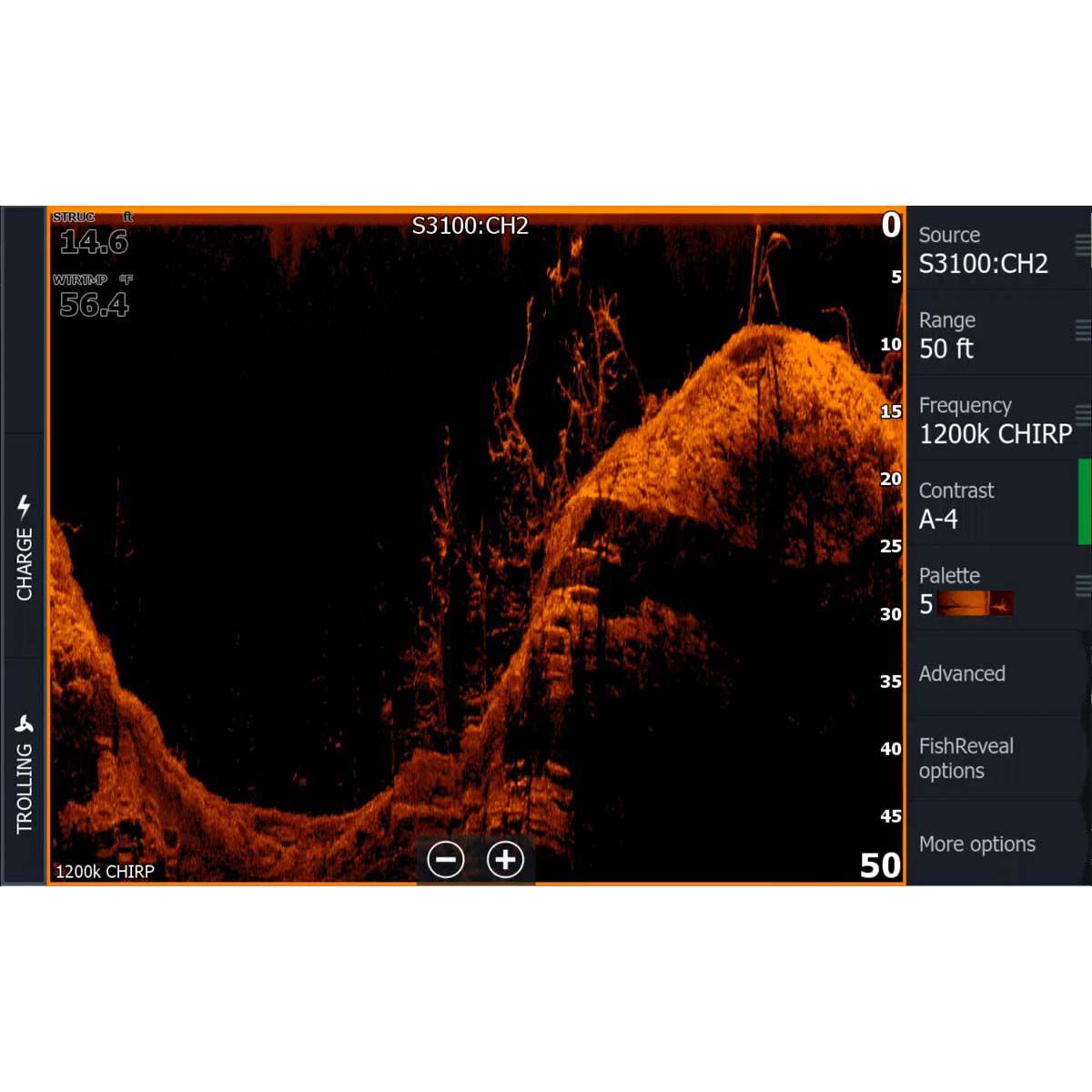

ACTIVE IMAGE HD SONAR FREQUENCIES | DownScan 700kHz CHIRP, 1200kHz Chirp, SideScan 455kHz CHIRP, 1075kHZ CHIRP |

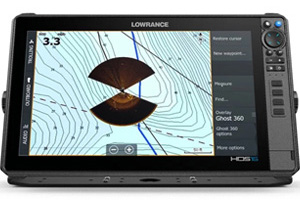

AIS CHART AND RADAR OVERLAY | Yes |
OUTBOARD PILOT SUPPORT | Yes |
NAC-1 AND NAC-2 SUPPORT | Yes |
GHOST TROLLING MOTOR SUPPORT | Yes |
MOTORGUIDE XI5/XI3 SUPPORT | Yes (with MotorGuide PinPoint Gateway) |
INCLUDED CHARTS | AUS/NZ enhanced basemap |

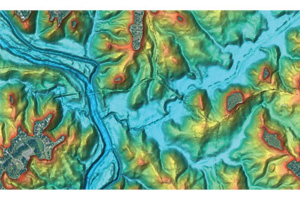

SUPPORTED CHARTS | C-MAP REVEAL, C-MAP DISCOVER, C-MAP Genesis, Navionics, Lowrance Regional Mapping Partners |
INTERNAL STORAGE | 8GB Internal |
MULTIMEDIA | SoniHub, SonicHub2, FusionLink products, NMEA2000 compliant marine audio products |
RADAR COMPATIBILITY | HALO 20/20+/24, HALO 3'/4'/6' |
COMPASS SAFE DISTANCE | 12' (300mm) |
WAYPOINTS, ROUTES AND TRACKS | 3000 waypoints, 100 routes, 100 trails with up to 10000 points per trail |
NMEA 2000 CONNECTIVITY | 1 port (micro-c connector) |
NMEA 0183 CONNECTIVITY | 1 port (via power connector) |
SONAR CONNECTIVITY | 2 ports |
ANALOG VIDEO CONNECTIVITY | 1 port (via power cable, adaptor cable sold separately) |
ETHERNET CONNECTIVITY | 2 100 Mbit ports (5-pin connector), supports up to 6 MFDs on a network |
CARD READER CONNECTIVITY | 2 slots (micro SD SDXC) up to 32GB |
WIFI CONNECTIVITY | Internal 82.11 b/g/n and compatible WIFI-1 module |
BLUETOOTH CONNECTIVITY | Bluetooth 4.0 with support for Bluetooth classic |
SUPPLY VOLTAGE | 12V DV (10.8-17 V DC) |
POWER CONSUMPTION | 40 W (2.9 A at 13.8 V DC) |
RECOMMENDED FUSE RATING | 0.125 |
MOUNTING TYPE | Panel mount or bracket mount |
COMPASS SAFE DISTANCE | 50cm (1.6ft) |
WATERPROOF RATING | IPX7 with card door closed |
