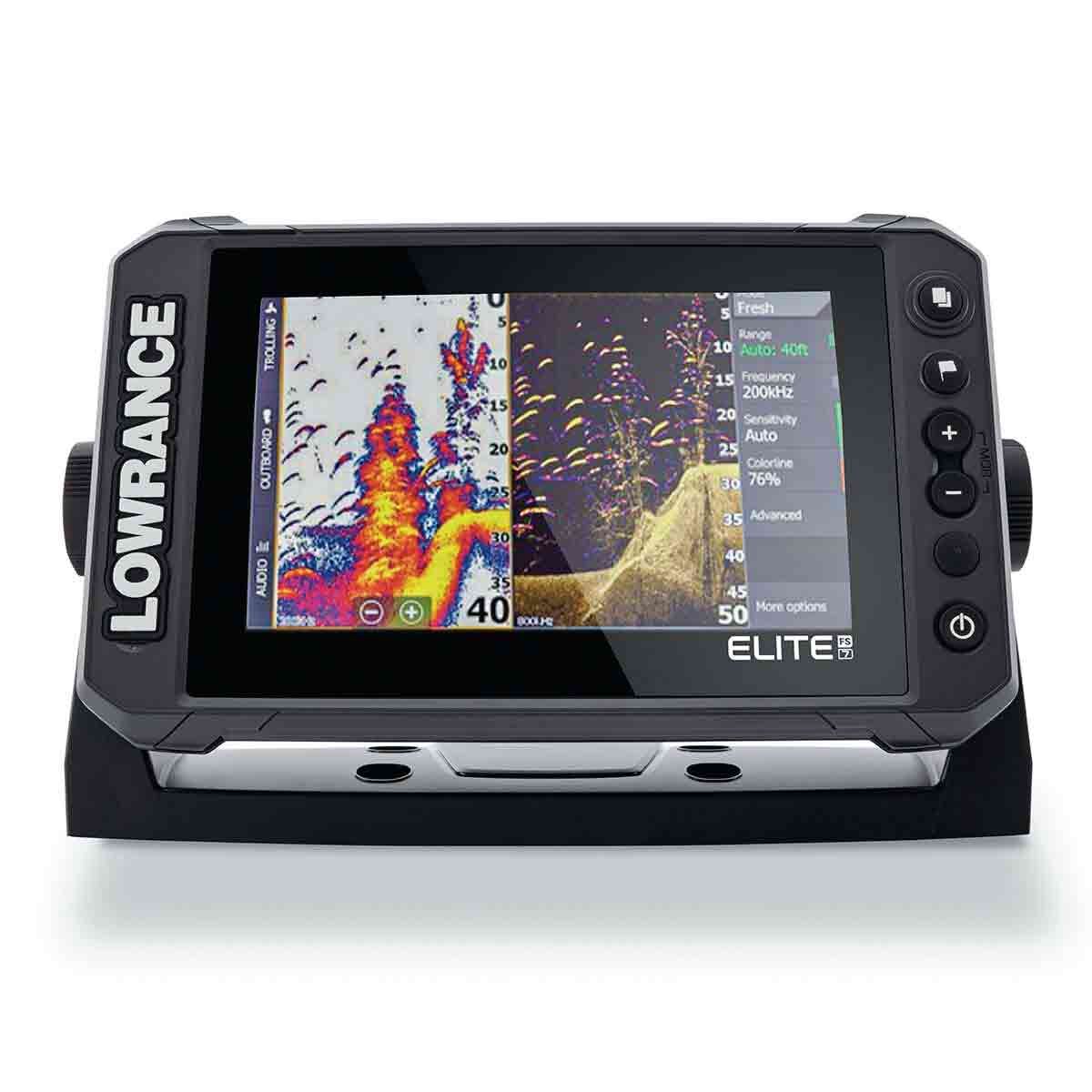

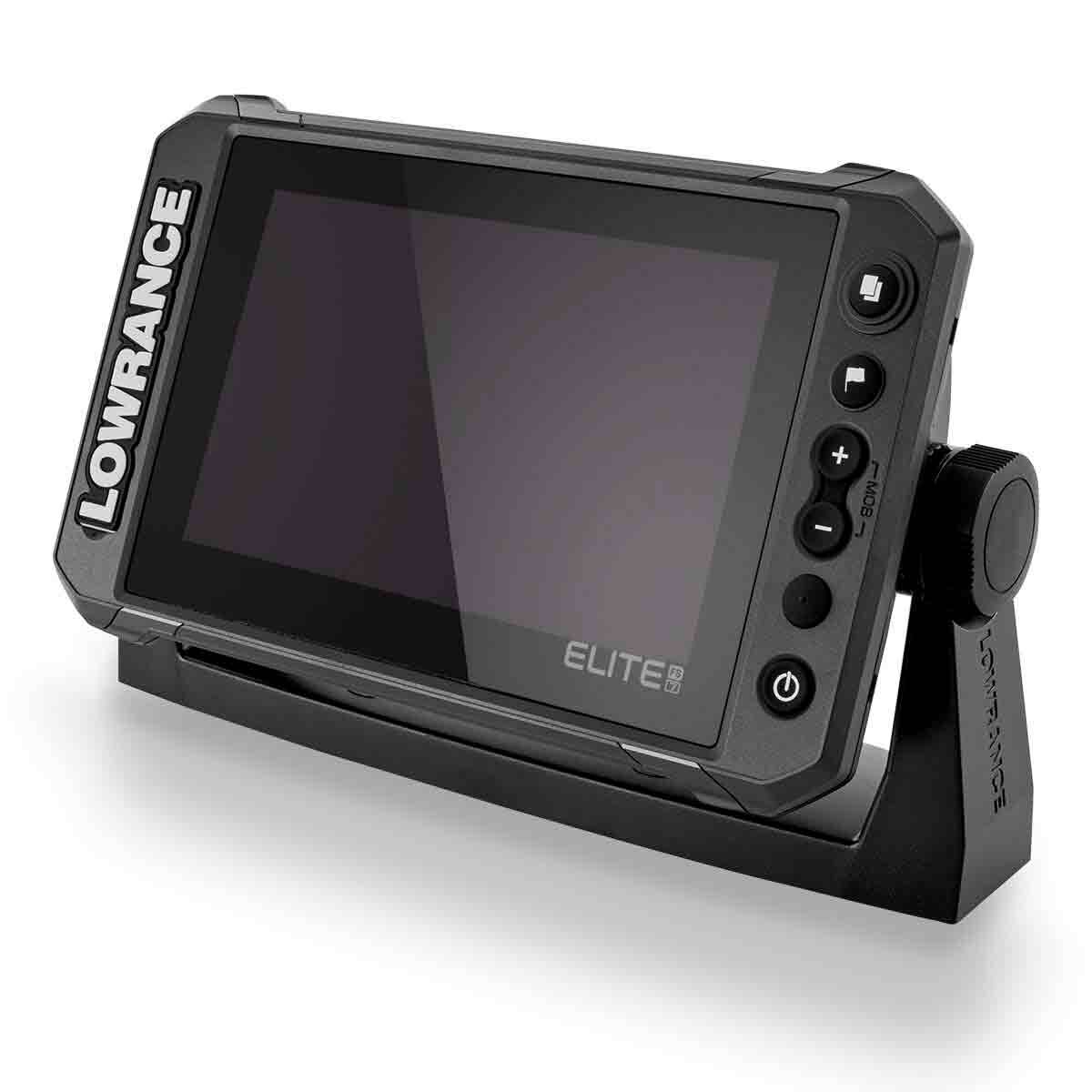

Lowrance Elite FS7” Combo Including Active Imaging 3-in-1 Transducer and CMAP
Details
https://www.bcf.com.au/p/lowrance-elite-fs7-combo-including-active-imaging-3-in-1-transducer-and-cmap/607162.htmlPromotions
Special Offer
Or 4 payments of
$437.25
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info

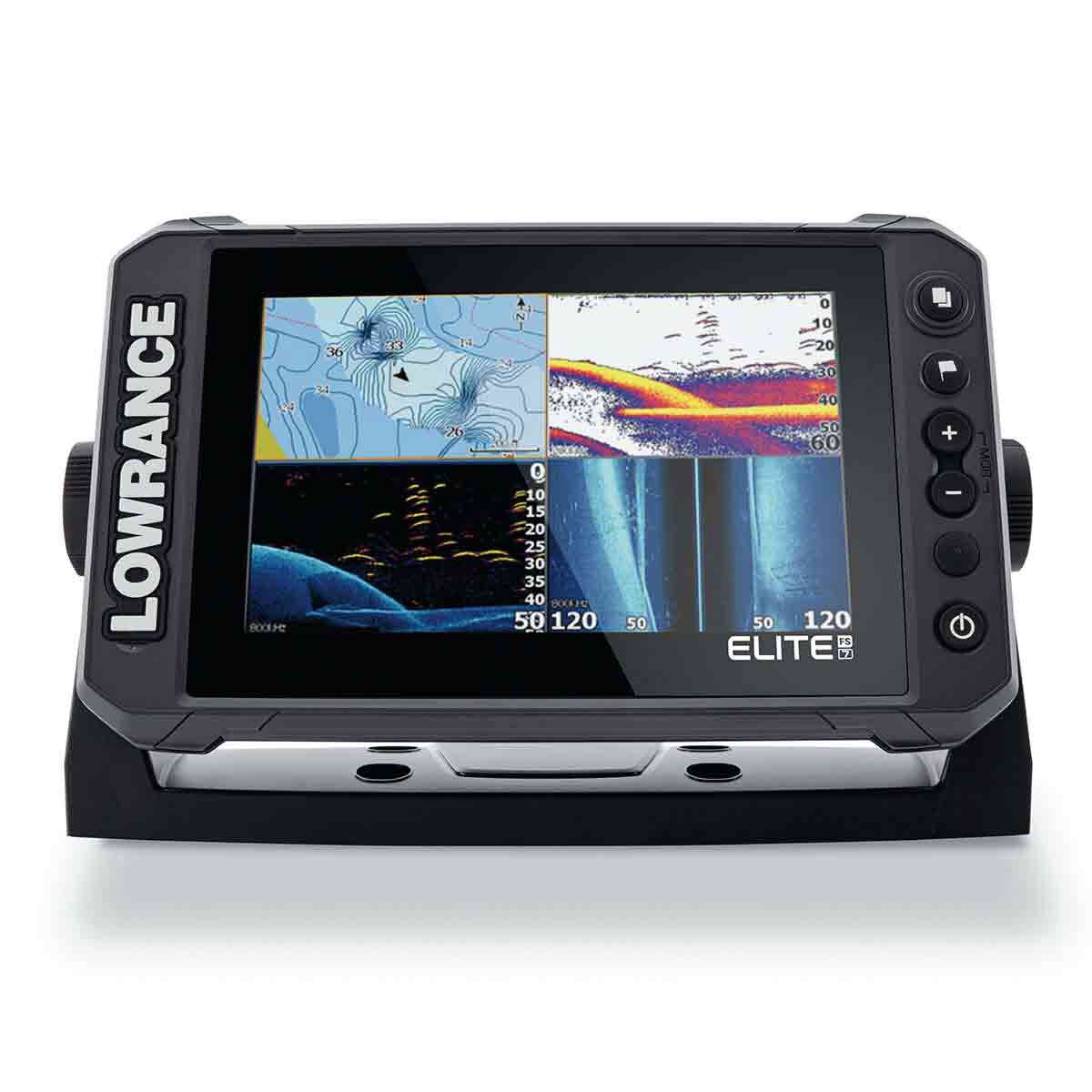

The Lowrance Elite FS7” Combo Including Active Image 3-1 Transducer and CMAP is an incredible piece of tech for finding more fish. This combo uses a bright, high-resolution multi touch 7 inch screen and comes preloaded with C-MAP® enhanced embedded charts. It’s compatible with a wide range of charts, so you can get a detailed view of everything beneath your boat.
The Elite FS7” Combo includes Lowrance’s FishReveal™ technology - a huge step forward that makes it easier to find fish by combining CHIRP sonar fish targets. The whole package supports wireless networking, so you won’t be tripping over inconvenient cables. A great package for crystal-clear information to help you catch more fish.
Features

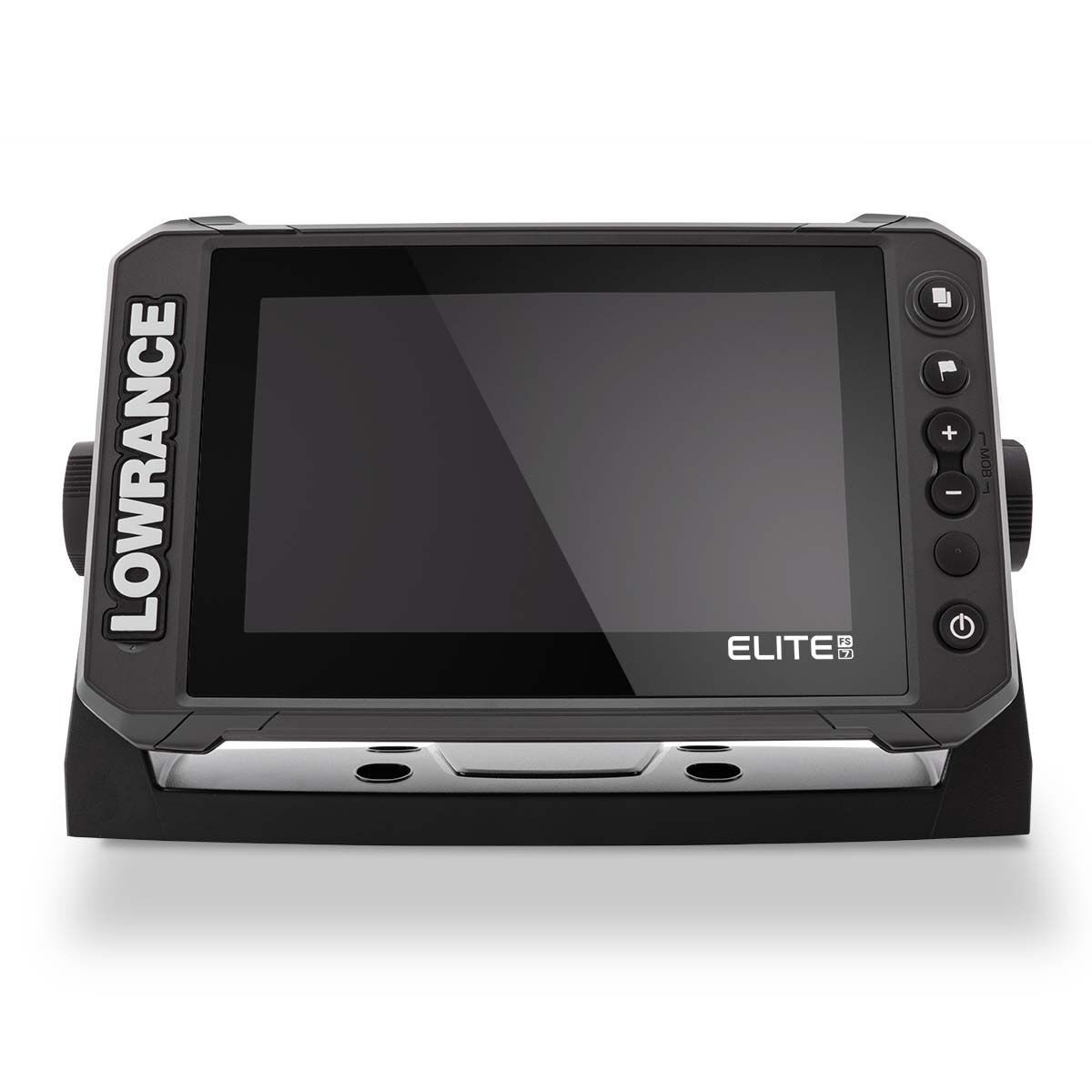

- High Resolution multi touch 7" screen

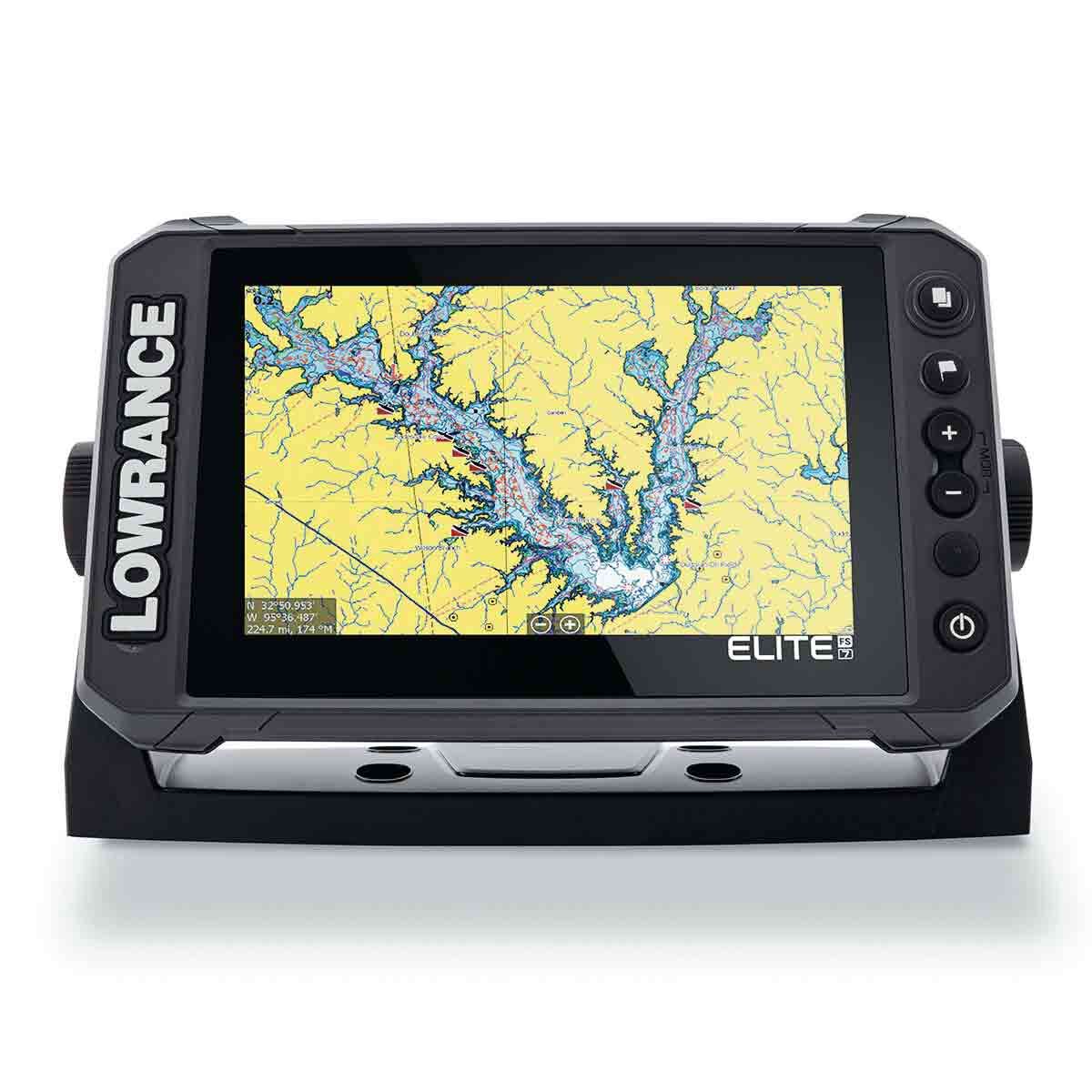

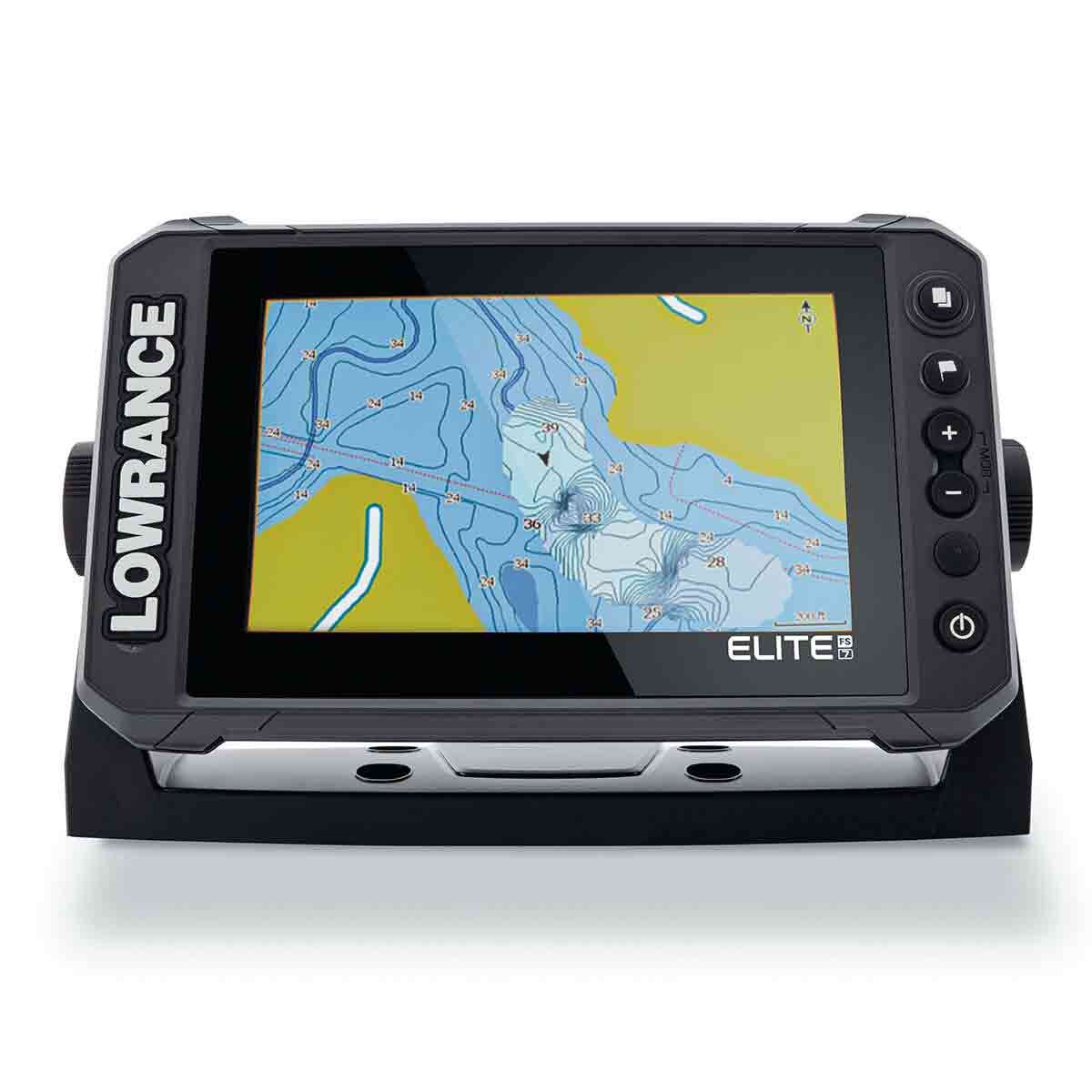

- Preloaded with C-MAP® enhanced embedded charts
- Compatible with a wide range of C-MAP® and other charts
- ActiveTarget™ Live Sonar ready (transducer purchased separately)
- Easy to install and use

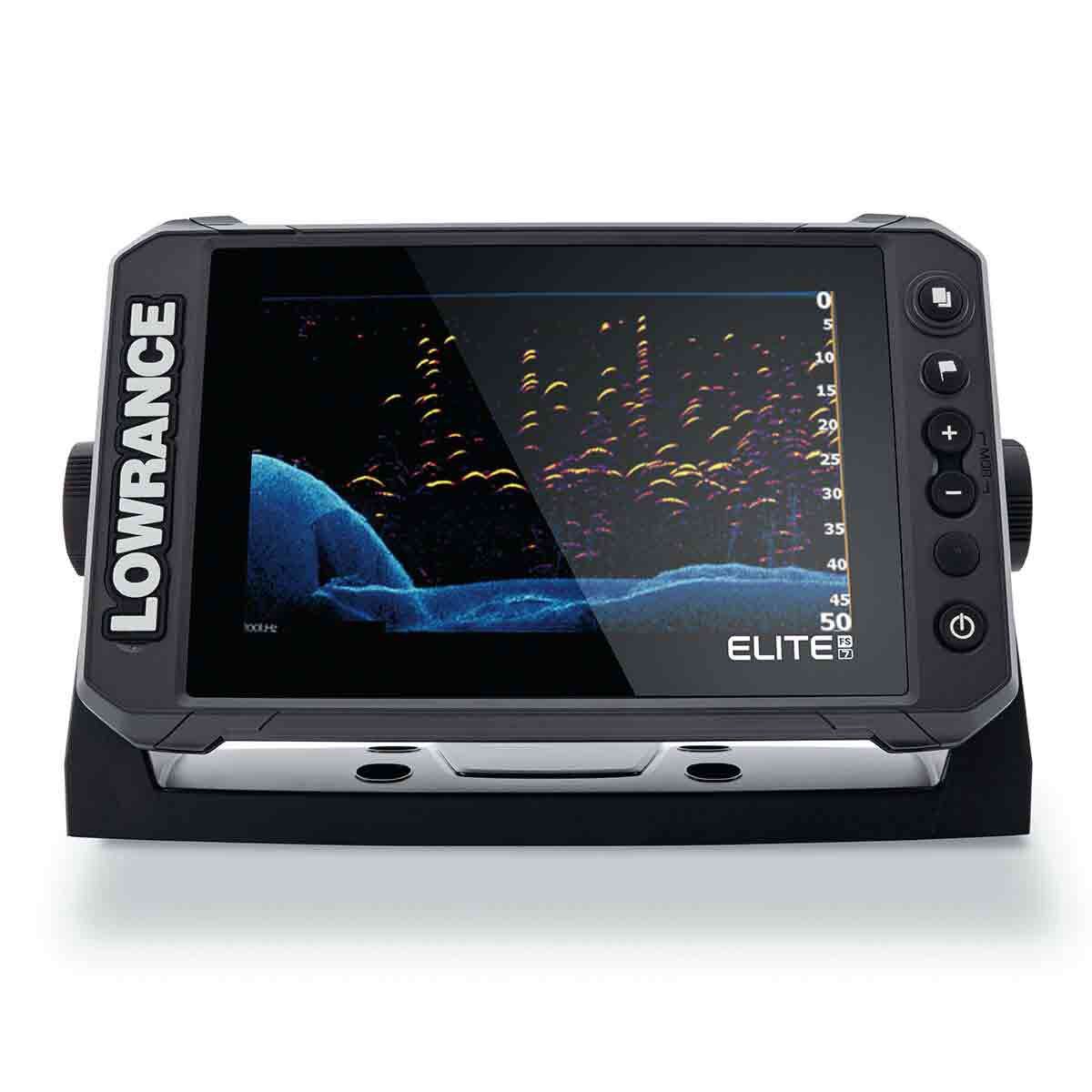

- FishReveal™ - Makes fish easier to see on DownScan Imaging™ by combining CHIRP sonar fish targets
- Ethernet for full vessel networking

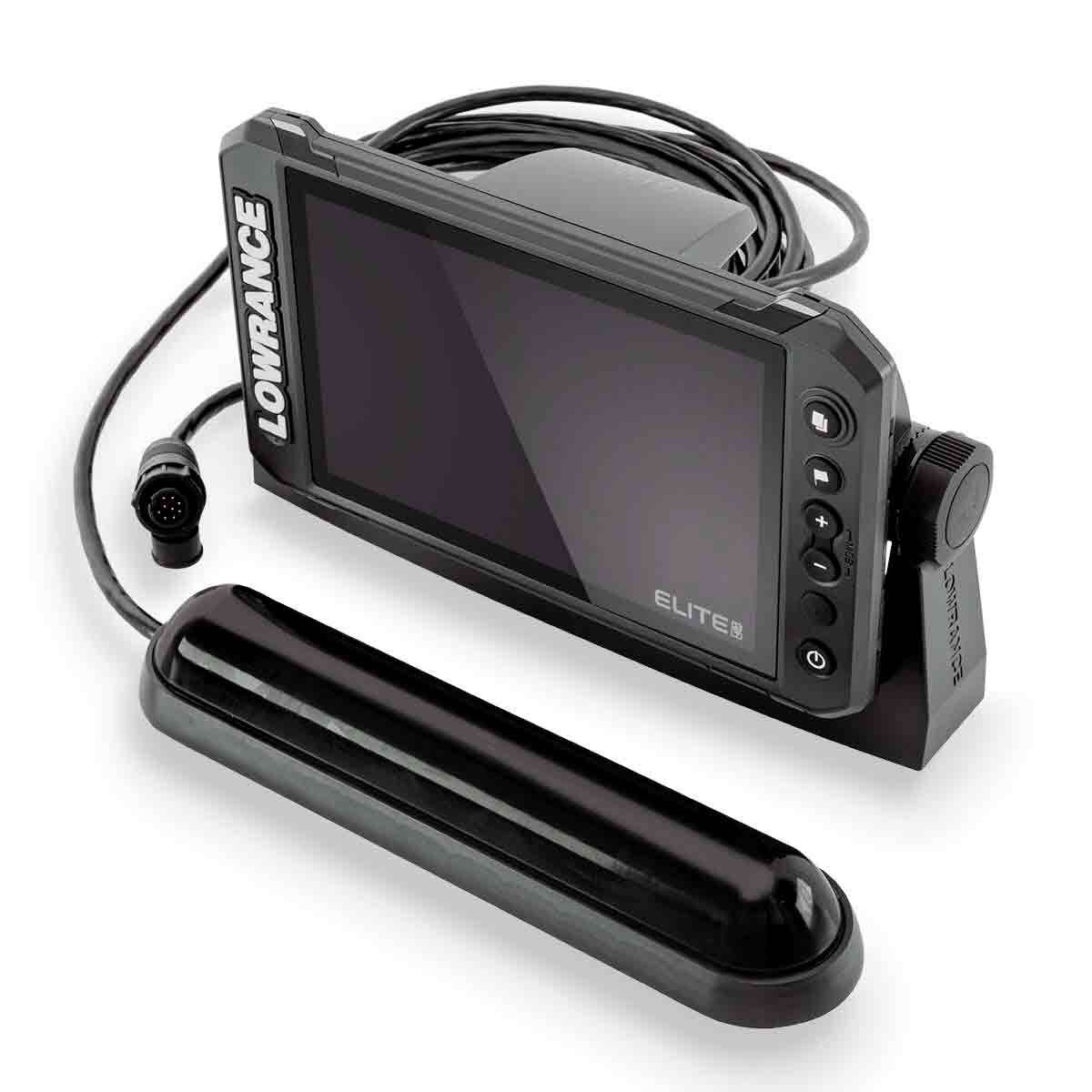

- Combo includes Active Imaging 3-in-1 Transducer
Tech Spec
LOWRANCE ELITE FS7” COMBO
| SONAR | |
|---|---|
| Power Output | Max 1 kW RMS |
| Sonar Connections | One connector for Active Imaging SideScan, DownScan and CHIRP |

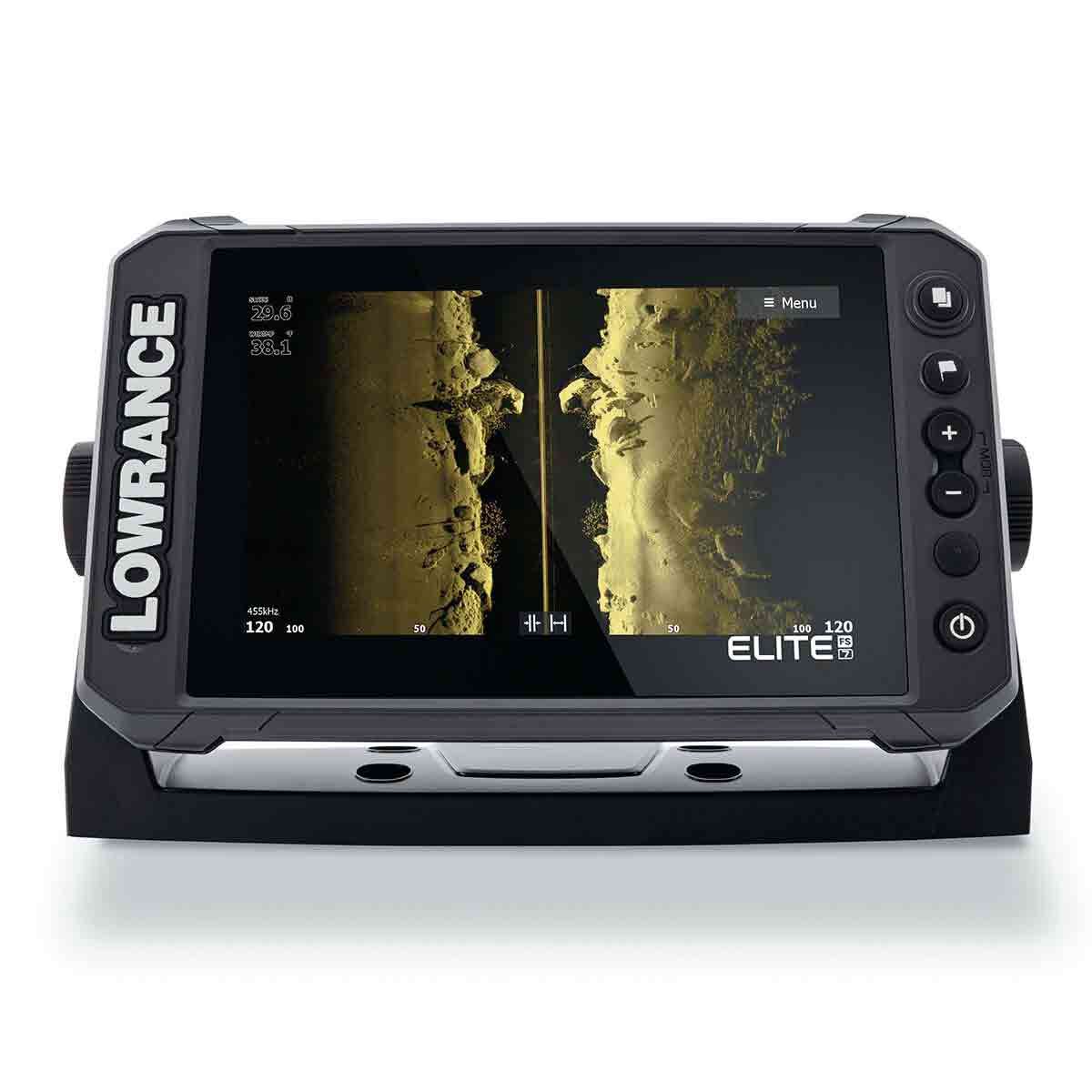

| Active Imaging 3-in-1 | DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m: SideScan Imaging at 455kHz: Max 300 ft./91 m to each side |
| CHIRP Sonar | High Range (160-240kHz)/200 kHz: 1000 ft / 305 m |
| CHIRP Sonar | Med Range (60-100kHz)/83 kHz: 1000 ft / 305 m |
| CHIRP Sonar | Low Range (40-60kHz)/50 kHz: 3000 ft / 900 m |
| Available Sonar Frequencies | Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging |
| Depth Alarm | Yes |
| Shallow Alarm | Yes |
| Temperature Readings | Yes |
| Transducer Type | Single 9-pin Connection; Multiple Transducer Selections from Lowrance® and Airmar® |
| ENVIRONMENTAL | |
| Operating temperature range | -15°C to +55°C (5°F to 131°F) |
| Storage temperature | -20°C to +60°C (4°F to 140°F) |
| Waterproof rating | IPX6 and IPX7 |
| ELECTRICAL | |
| Supply voltage | 12 V DC (10 - 17 V DC min - max) |
| Recommended fuse rating | 0.125 |
| Power consumption (maximum) | 28 W (2 A at 13.8 V DC) |
| DISPLAY | |
| Resolution | 800 x 480 pixels |
| Viewing angles in degrees | 50° top, 60° bottom, 70° left and right |
| Brightness | > 1200 nits |
| Touch screen | Multitouch |
| PHYSICAL | |
| Weight (display only) | 0.9 kg (1.9 lbs.) |
| Compass Safe Distance | 0.5 m (1.6 ft.) |

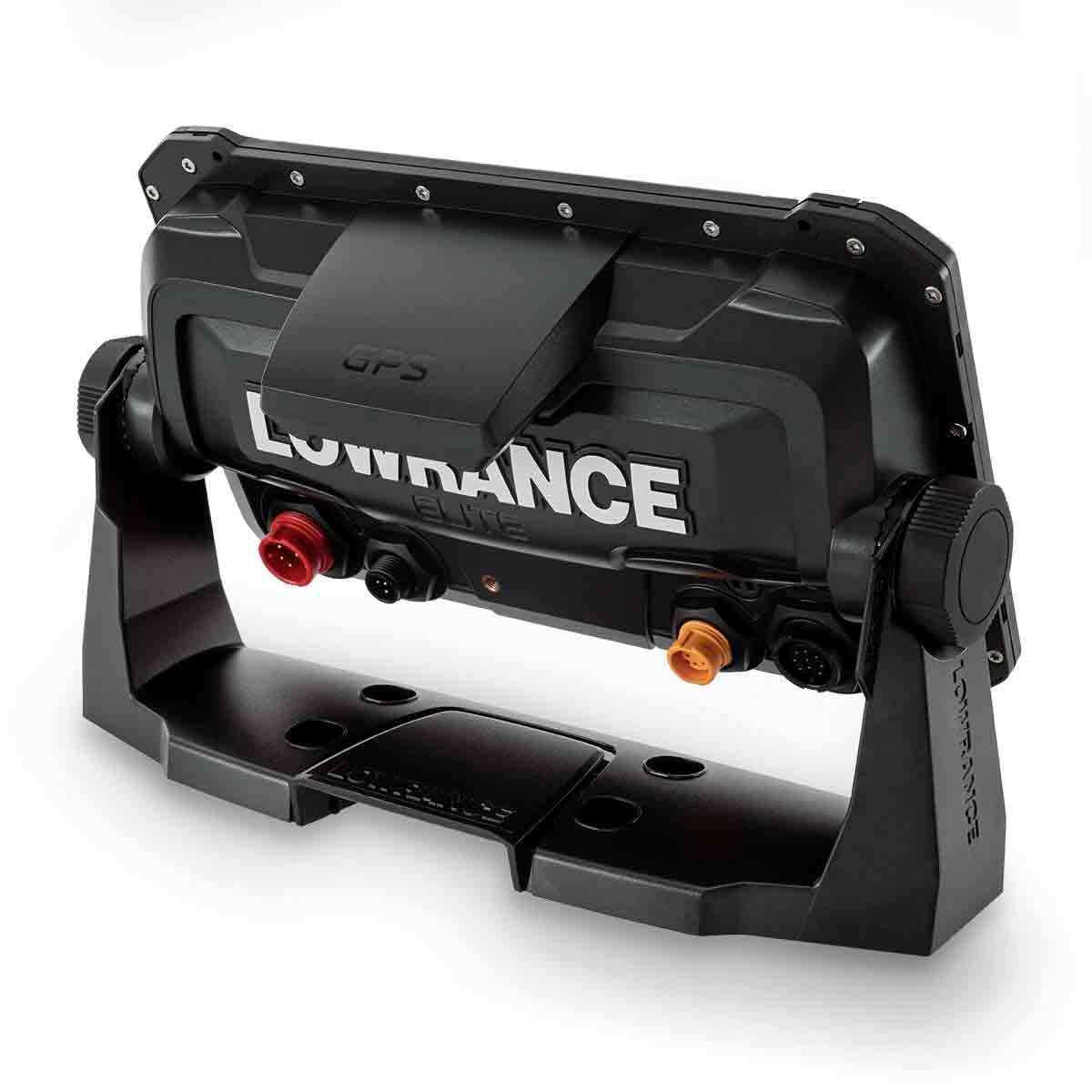

| INTERFACE / CONNECTIVITY | |
| NMEA 2000® | 1 port (Micro-C connector) |
| Data card reader | 1x slot (microSD, SDXC) |
| Ethernet | 1 port, (5-pin Ethernet connector, 100Base-T) |
| Sonar | 1 port (9-pin connector) |
| WiFI Internal | 802.11b/g/n : No wireless networking between units |
| Bluetooth® | 4.0 with support for Bluetooth® Classic |
| GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
