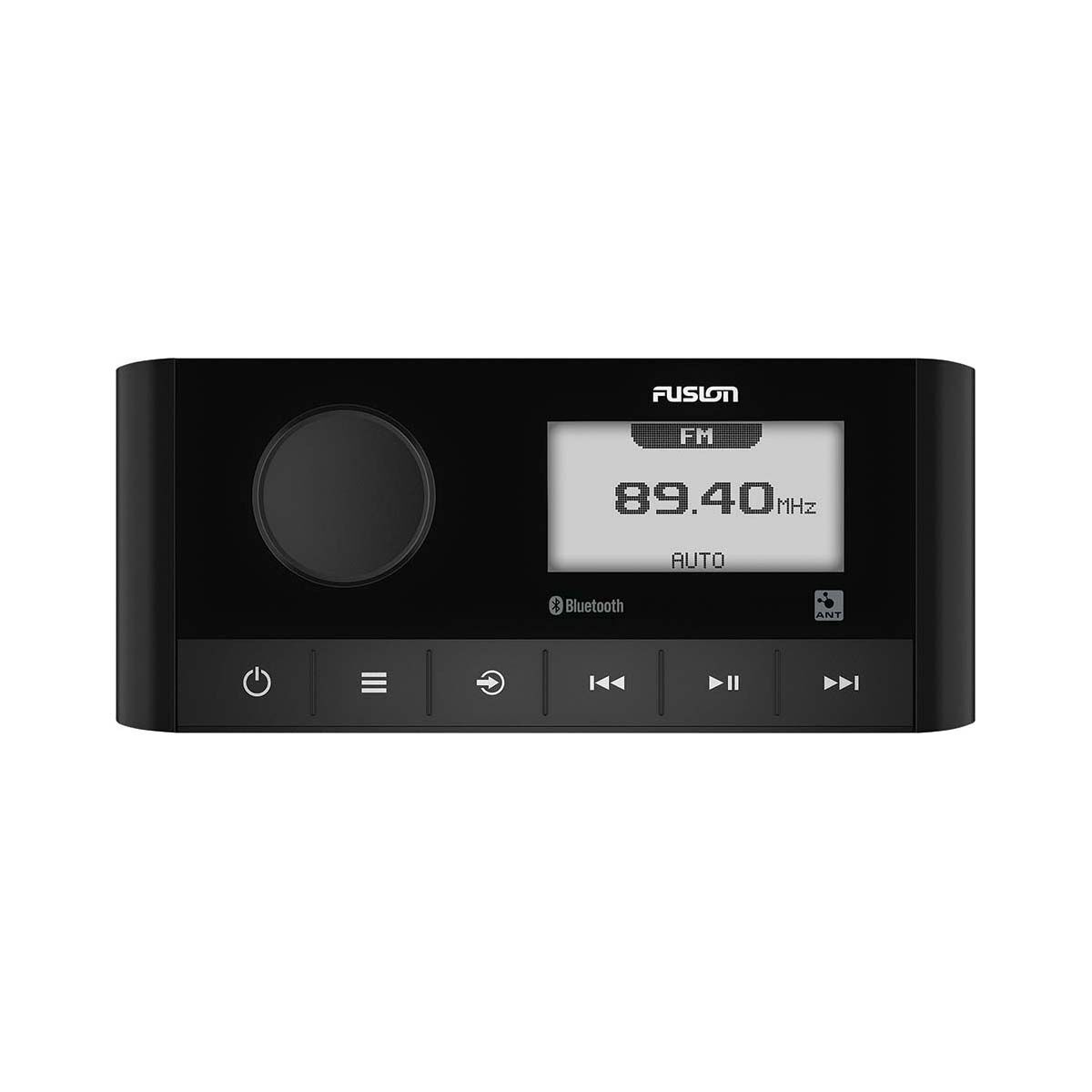

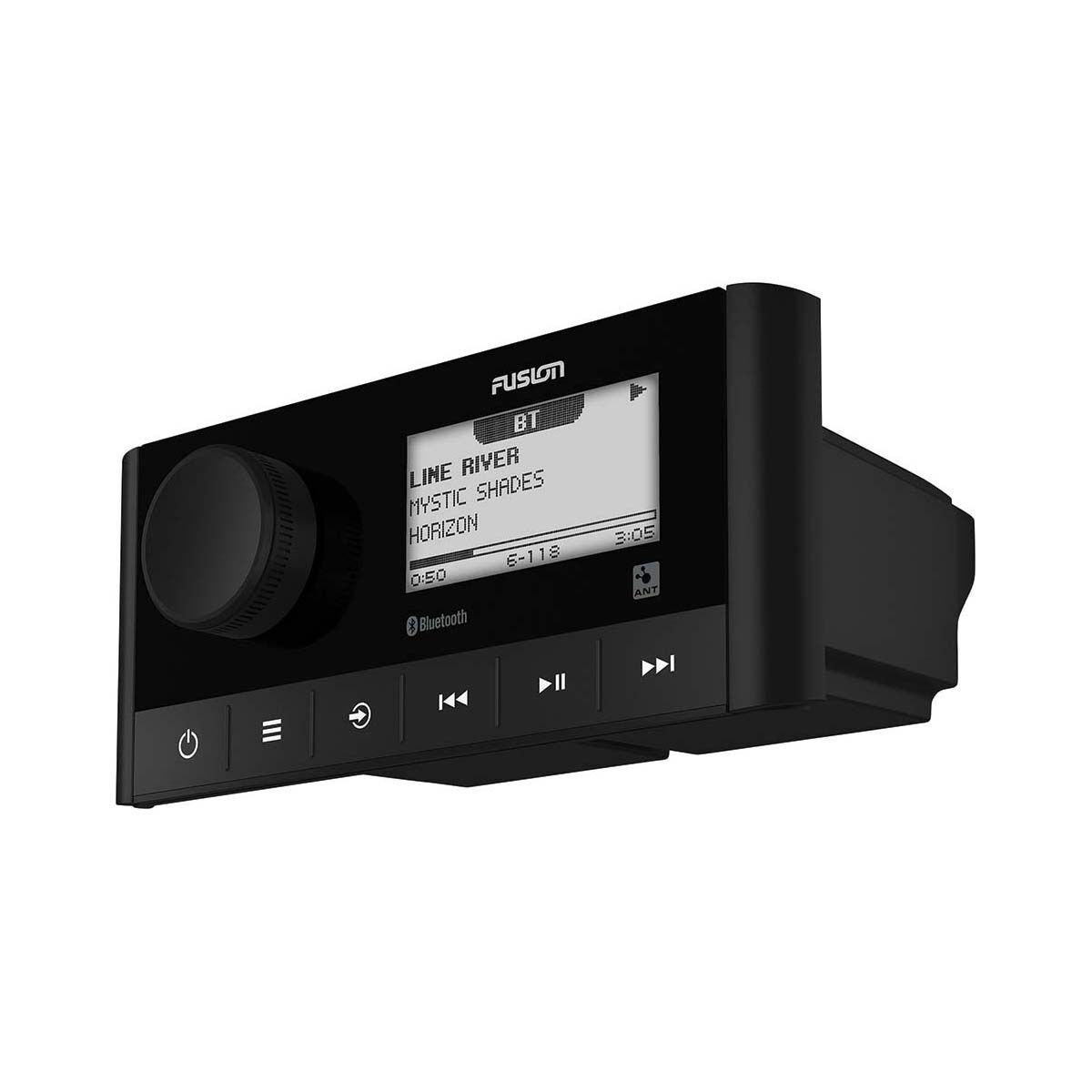

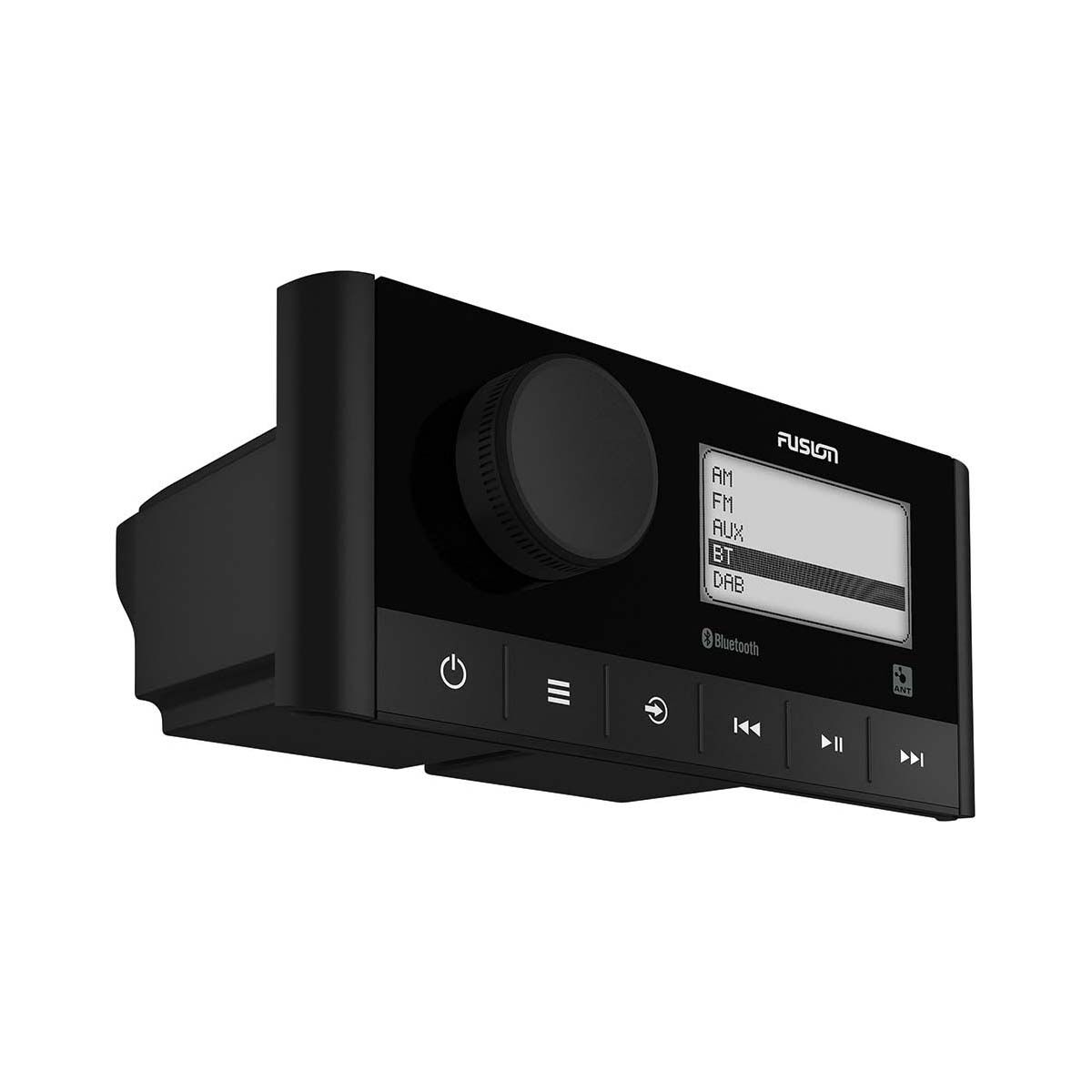

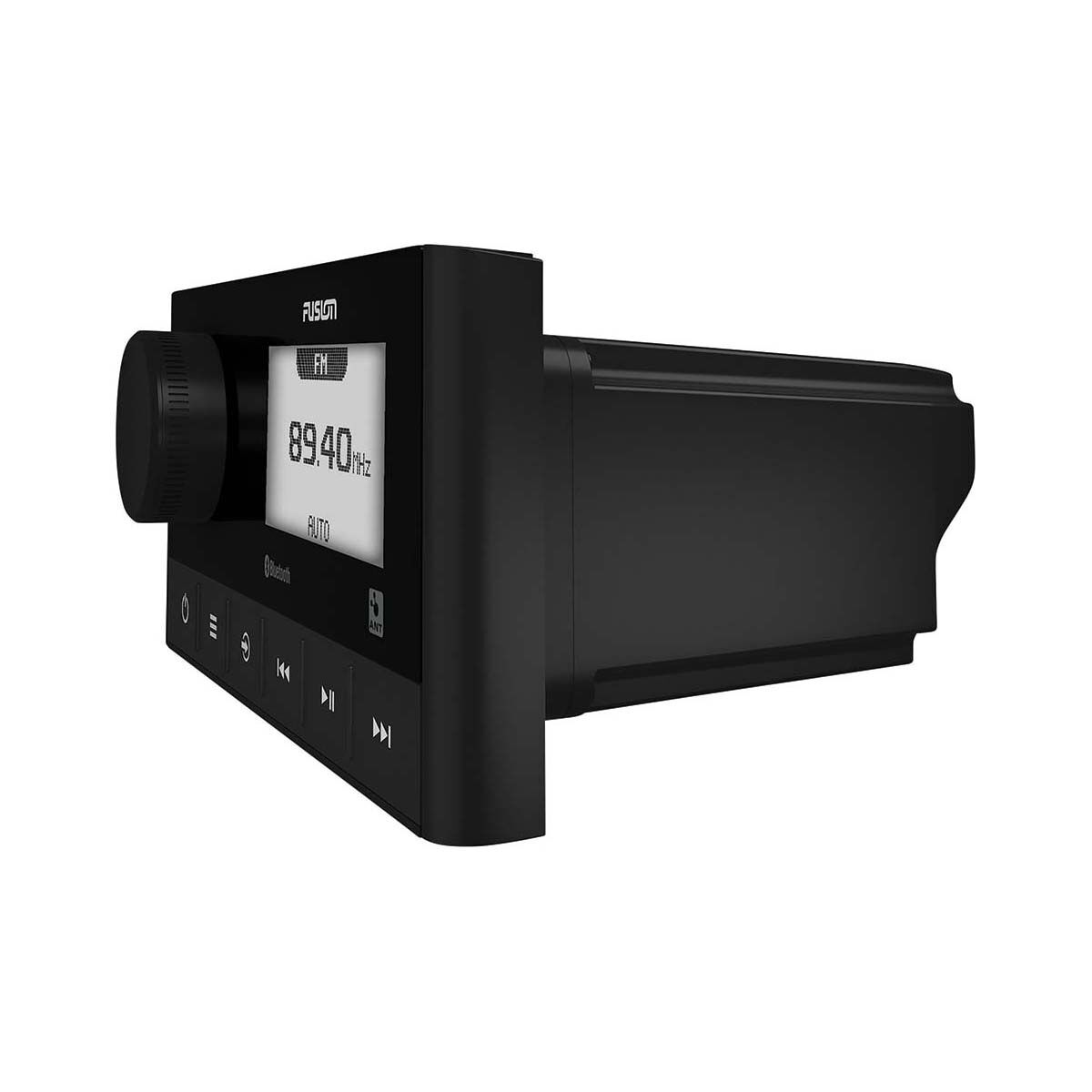

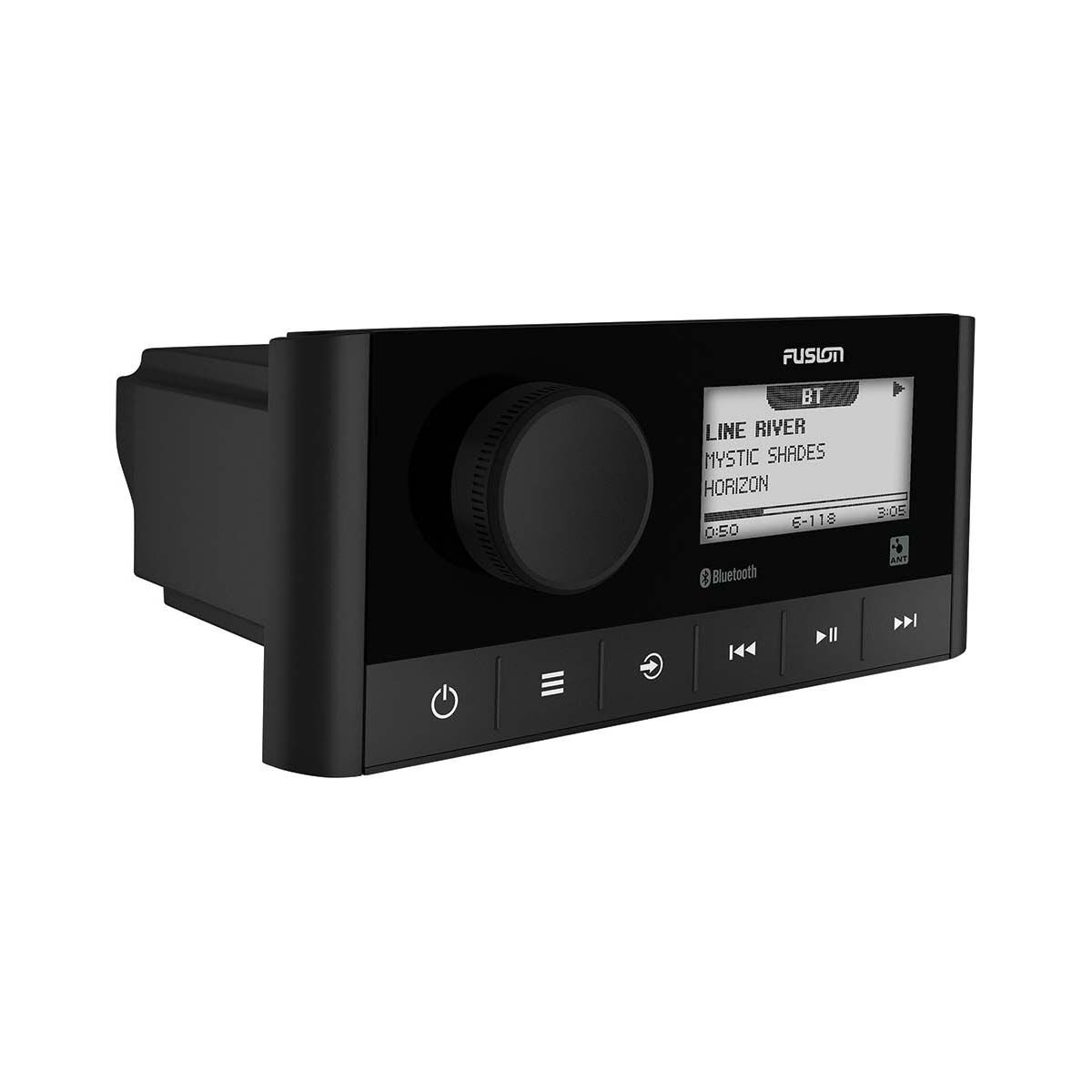

Amplify the moment with the Fusion MS-RA60 Stereo and EL Sport Speaker Kit. This marine stereo and speaker kit comes ready to install, so you can get out on the water and enjoy your music without the hassle. It's easy to control from your compatible Garmin watch, smart phone or device, or Garmin MFD.
Fusion's Multi-Zone™ technology allows you to create a customised audio environment for your vessel. Multi-Zone creates multiple independent audio areas - so you can party with loud music up above, while the others are relaxing with some quiet jazz below decks. You can control all the audio settings for each zone through the stereo, so this tech gives you everything you need for that perfect mix on the water.
The built-in Class D amplifier really pushes the sound and efficiency of these speakers to the next level. And of course the kit is designed to handle the stress of marine environments, with an IPX6 and IPX7-rated water-resistant front panel. Perfect for your next party on the water.
Features
- Marine stereo and both speakers come ready to install, so you can party right away
- Easily control music from your compatible Garmin MFD, smart device or Garmin watch
- Built-in Class D amplifier brings aboard higher efficiency and greater output
- Multi-Zone™ Technology makes you the captain of two separate audio zones
- Conveniently update software via Bluetooth® technology from the Fusion-Link™ app on your compatible smart device
- Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to handle marine environments
- Elegant modern style with black front face that blends seamlessly into black glass panels
Tech Spec
| PHYSICAL DIMENSIONS (HXWXD) | MS-RA60: 2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm) |
|---|---|
| WEIGHT | MS-RA60: 11.1 oz (316 g) |
| WATER RATING | IPX6 and IPX7 (front panel only, when properly installed) |
| POWER INPUT | 10.8-16 VDC |
| OPERATING TEMPERATURE RANGE | 32° to 122° F (0° to 50° C) |
| CURRENT (MAX.) | 15 A |
| BLUETOOTH® WIRELESS RANGE | Up to 30 ft (10 metres) |
| ANT WIRELESS RANGE | Up to 10 ft (3 metres) |
| WIRELESS FREQUENCIES/PROTOCOLS | Bluetooth 2.4 GHz @ +12 dBm nominal |
| ANT 2.4 GHz @ +7 dBm nominal | |
| COMPASS-SAFE DISTANCE | 5.9″ (150 mm) |
| DISPLAY | MS-RA60: 2.3″ perimeter bonded monochrome dot matrix LCD |
| BUILT-IN AMPLIFIER | Class-D (minimum 4 Ohm impedance) |
| PEAK POWER | MS-RA60: 180 W |
| RATED POWER OUTPUT (4 OHM) | MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD |
| FUSION-LINK™ CONTROL | MS-RA60: Yes (with smartphone and Garmin watch) |
| MULTI-ZONE™ TECHNOLOGY | 2 zones |
| BLUETOOTH WIRELESS TECHNOLOGY | Yes |
| ANT WIRELESS TECHNOLOGY | Yes |
| DAB+ READY | MS-RA60: Yes (DAB tuner built in) |
| MULTI-LANGUAGE INTERFACE | MS-RA60: Dutch, English, French, German, Italian, Spanish |
| SOFTWARE UPDATES | MS-RA60: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app |
| WARRANTY | 1 year |
| SOURCES | MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only) |
| AUXILIARY INPUT | One RCA input (AUX) |
| AM/FM RADIO | One Motorola antenna connector port |
| SPEAKER | MS-RA60: 4 x speaker connections (2 zone amplified) |
| RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) | MS-RA60: 1 zone (requires external amplification) |
| LINE OUT | MS-RA60: Zone 1 (L + R, requires external amplification) |
| SUBWOOFER OUT | MS-RA60: Zone 1 (requires external amplification) |
| LINE OUT | MS-RA60: Zone 1 (L + R, requires external amplification) |
| SUBWOOFER OUT | MS-RA60: Zone 1 (requires external amplification) |
| SPEAKER SPECIFICATIONS | |
| PHYSICAL DIMENSIONS (HXWXD) | EL Sports Speaker: 6.93″ x 2.32″ (176 x 59 mm) |
| WATER RATING | IP65 |
| CONFIGURATION | EL Speaker: Full range |
| SPEAKER SIZE | 6.5″ |
| PEAK POWER (WATTS) | EL Speaker: 80 W |
| RMS POWER (WATTS) | EL Speaker: 20 W |
| SENSITIVITY (1 WATT/1 METRE) | EL Speaker: 88 dB |
| FREQUENCY RESPONSE | EL Speaker: 45 Hz-16 kHz |
| NOMINAL IMPEDANCE | 4 ohm |
| RECOMMENDED AMPLIFIER POWER (RMS) | EL Speaker: 20-40 W/Ch |
| OPERATING TEMPERATURE RANGE | 32° to 122° F (0° to 50° C) |
| VOICE COIL DIAMETER | EL Speaker: 0.79″ |
| CONE MATERIAL | Polypropylene cone with cloth surround |
| COMPASS-SAFE DISTANCE | EL Speaker: 100″ (254 cm) |
| XS Speaker: 122″ (310 cm) | |
| WARRANTY | EL Speaker: 1 year |
| MOUNTING DIAMETER CLEARANCE | EL Speaker: 5.12″ (130 mm) |
| MOUNTING DEPTH CLEARANCE | EL Speaker: 1.69″ (43 mm) |
