Aussie Traveller Curved Roof Mini Rafter Black
Details
https://www.bcf.com.au/p/aussie-traveller-curved-roof-mini-rafter-black/652982.html
$73.99
Was
$82.99
Ends
24/12/24
Promotions
Special Offer
Variations
-
Colour Black
Additional Information
Product Info
Product Info

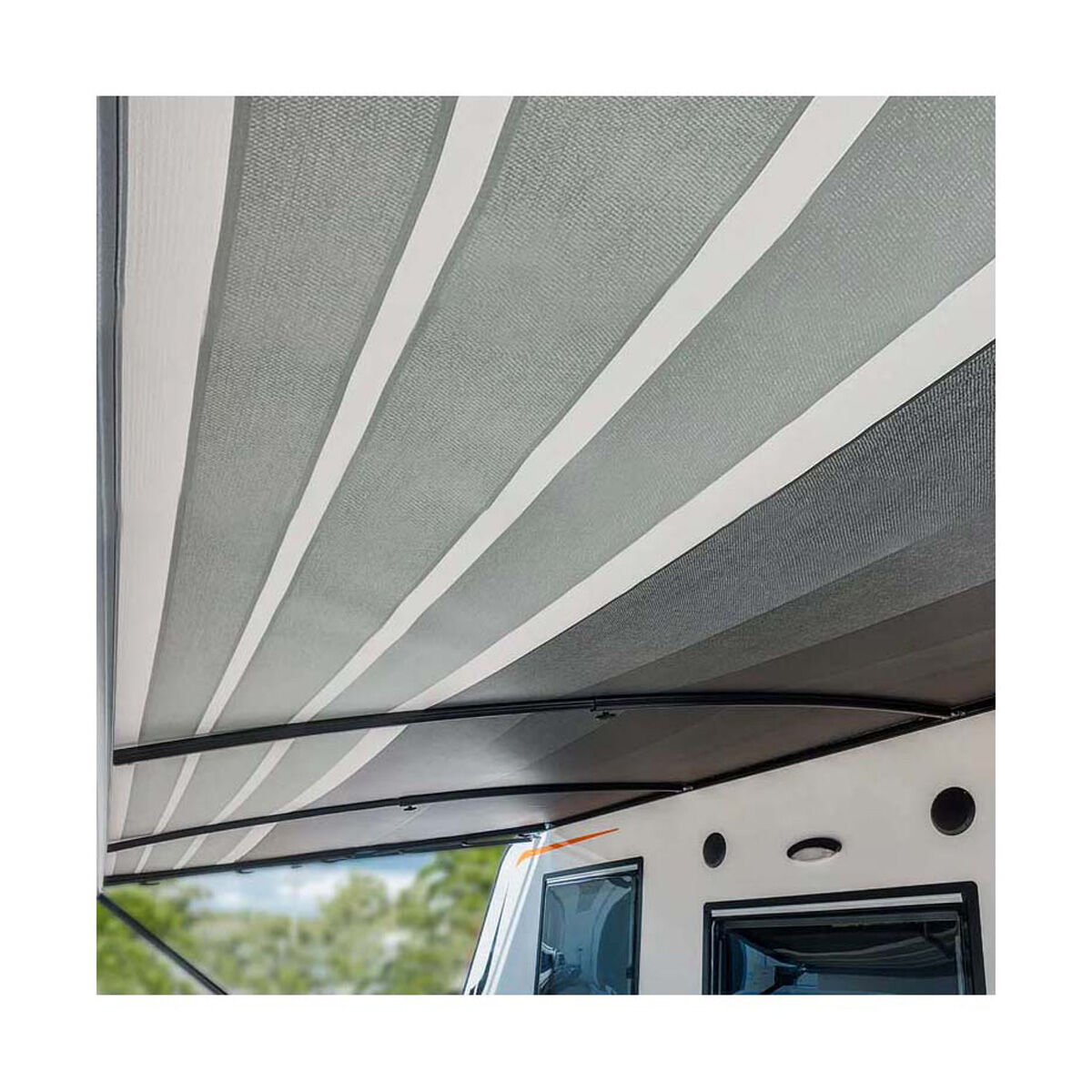

The Aussie Traveller Curved Roof Rafters help to prevent wind flap and sagging in the fabric of your awning. In doing this, it helps with water run off so it doesn't pool on your awning. They come with everything you need for easy installation and are suitable for most types of roll out awnings.
Features
- Provides curvature to awnings, improving water runoff and structural integrity
- Suitable for most rollout awnings
- 95mm to 98mm of curvature within the pole
- 2500mm maximum projection (length)
- Suitable for awnings of all lengths on pop-top caravans, or for shorter awnings on all other vehicle types
- Fitting brackets included
Tech Spec

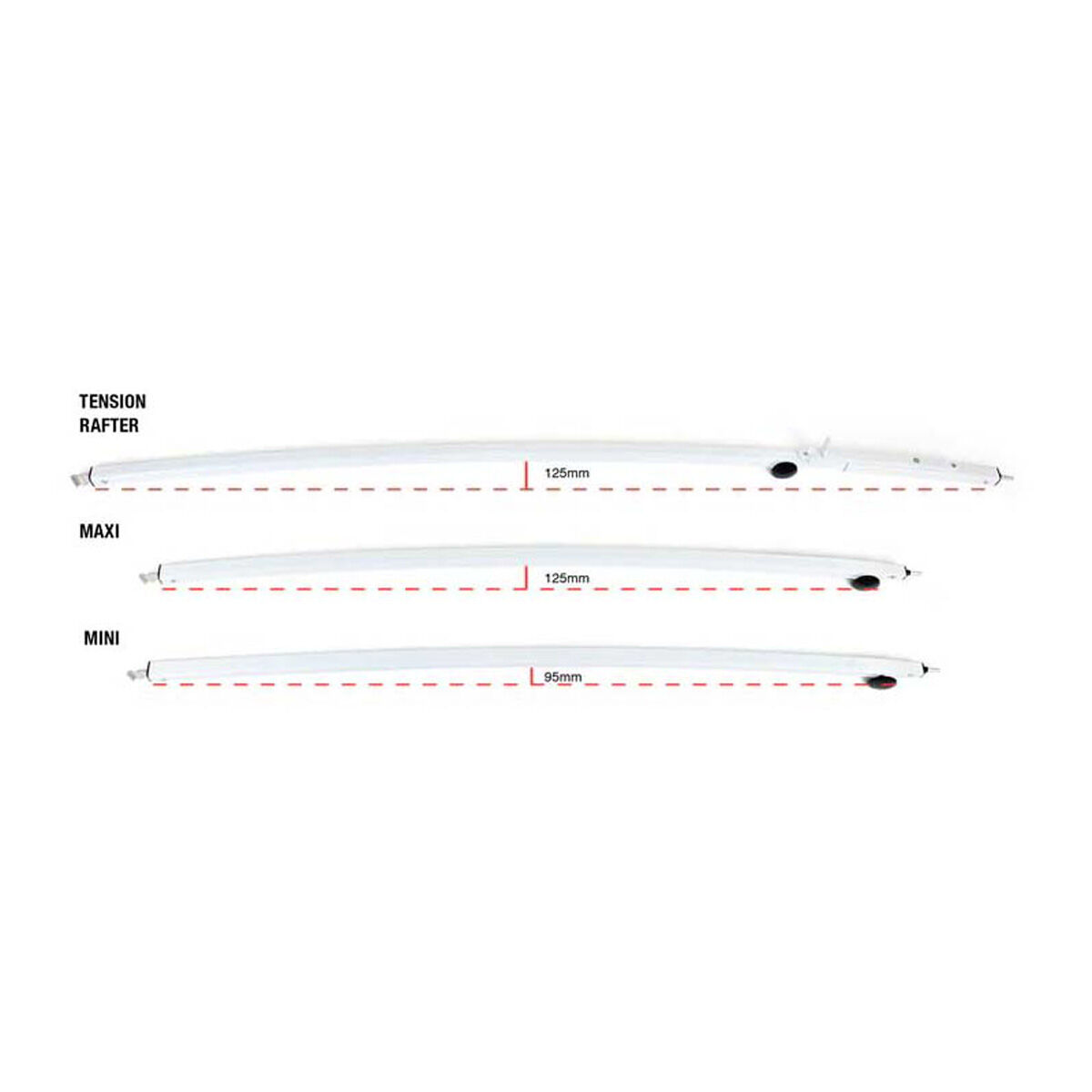

AUSSIE TRAVELLER RAFTER RANGE
NAME | PLU | CURVATURE | MAX PROJECTION | SUITABLE |
---|---|---|---|---|
CURVED ROOF MAXI RAFTER | 652890 | 123 - 125mm of curvature within the pole | 2500mm length | For longer awnings on all vehicle types |
CURVED ROOF MINI RAFTER | 652981, 652982 | 95 - 98mm of curvature within the pole | 2500mm length | For awnings of all lengths on pop-top caravans, or for shorter awnings on all other vehicle types |
ROOF TENSION RAFTER | 652983 | 123 - 125mm of curvature within the pole | 2500mm length | For longer awnings 18’ and over |
AWNING SIZE AND NUMBER OF CURVED ROOF RAFTERS RECOMMENDED
11' AND UNDER | 1 |
---|---|
12' | 1 to 2 |
13' - 17' | 2 |
18' - 21' | 3 (it's recommended substituting 1 of the Curved Roof Rafter with a Curved Tension Rafter) |
22' AND OVER | 4 (it's recommended substituting 1 of the Curved Roof Rafter with a Curved Tension Rafter) |
